3D Printer Types Explained in Detail – SLA, DMLS, FDM, and SLS
3D printing has opened up endless possibilities across industries, from prototyping to full-scale manufacturing. There are several advanced 3D printing technologies available today, each offering unique benefits based on material, precision, and use case. In this blog, we’ll explore four of the most widely used 3D printing methods: FDM, SLS, SLA, and DMLS.
🔍 Overview: Types of 3D Printing Technologies
While all 3D printing processes share the core principle of additive manufacturing, the way they create objects can differ significantly. The major 3D printing technologies we’ll cover include:
- FDM (Fused Deposition Modeling)
- SLS (Selective Laser Sintering)
- SLA (Stereolithography)
- DMLS (Direct Metal Laser Sintering)
Let’s break down each of these technologies in detail:
1️⃣ FDM (Fused Deposition Modeling) 3D Printing
FDM is one of the most popular and accessible 3D printing technologies on the market. Known for its simplicity and affordability, FDM is widely used for home projects, prototypes, and functional tools.
How FDM Works:
- Thermoplastic filaments such as PLA, ABS, and PETG are loaded into the printer.
- The filament is heated in an extruder to its melting point.
- The melted material is extruded through a nozzle and deposited layer-by-layer to build the final object.
Common Filaments:
- PLA (Polylactic Acid): Biodegradable and perfect for prototyping.
- ABS (Acrylonitrile Butadiene Styrene): Tough and impact-resistant—ideal for mechanical parts.
- PETG (Polyethylene Terephthalate Glycol): Durable and moisture-resistant, suitable for a wide range of functional applications.
The Role of Temperature Sensors:
Temperature sensors monitor and regulate the extruder’s heat to maintain optimal melting temperatures. These sensors send feedback to the printer’s microcontroller, which automatically adjusts heating levels to ensure consistent material flow.
FDM Printing Process – Step-by-Step:
- Load the selected filament into the printer.
- Heat the extruder to the desired temperature.
- Melted filament is extruded and guided by a 3-axis motion system (X, Y, Z).
- Each layer is deposited until the object is complete.
✅ Fast, affordable, and easy to use—FDM is perfect for education, medical tools, robotics, agriculture, and industrial prototyping.
2️⃣ SLS (Selective Laser Sintering) 3D Printing
SLS is a powder-based 3D printing technology that doesn’t use filament like FDM. Instead, it uses a laser to fuse layers of nylon or other polymers.
How SLS Works:
- A laser selectively sinters (fuses) powder particles to form a solid structure.
- After each layer is sintered, a fresh layer of powder is spread on top.
- The process repeats until the full object is built.
Key Advantages:
- No need for support structures – the unsintered powder surrounding the object provides natural support.
- Excellent for complex geometries and functional prototypes.
SLS Printing Process – Step-by-Step:
- Upload and slice the 3D model.
- A laser fuses the first layer of powder.
- A new powder layer is spread.
- The process continues until the object is complete.
- Excess powder is removed using a brush or air.
✅ SLS is widely used in automotive, aerospace, and medical device prototyping due to its ability to produce strong, detailed, and accurate parts.

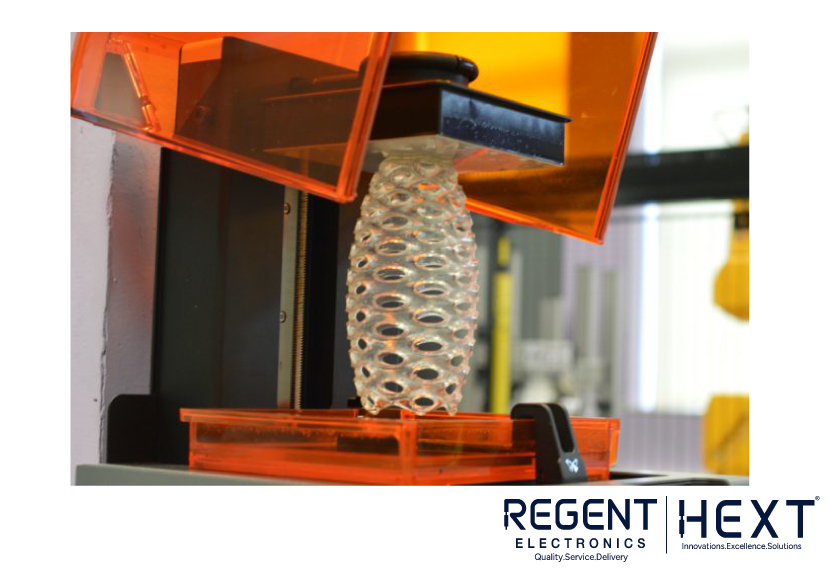

3️⃣ SLA (Stereolithography) 3D Printing
SLA is a resin-based 3D printing technique that offers exceptional detail and surface finish.
How SLA Works:
- SLA uses a UV laser to cure layers of liquid resin through a process called photopolymerization.
- When the laser hits the resin, it solidifies the material, building the object layer by layer.
The Photopolymerization Process:
When UV light interacts with the resin, it activates monomer chains, causing them to link and solidify. This is an irreversible chemical reaction, meaning once hardened, the resin cannot be returned to its liquid state.
SLA Printing Process – Step-by-Step:
- Design and slice the 3D model.
- The UV laser reflects off a mirror system to precisely cure resin layers.
- After each cured layer, the platform lowers to make room for the next layer.
- After printing, the object is post-cured under UV light for extra durability.
✅ SLA is ideal for applications requiring high resolution and a smooth finish, such as dental models, miniatures, jewelry, and custom molds.
4️⃣ DMLS (Direct Metal Laser Sintering) 3D Printing
DMLS is an advanced 3D printing technology used to create functional metal parts directly from CAD models.
How DMLS Works:
- A high-powered laser fuses fine metal powder into solid metal parts, layer by layer.
- No molds or tooling is required, making it ideal for custom or low-volume production.
Benefits of DMLS:
- Produces dense, functional metal components with excellent mechanical strength.
- Reduces material waste compared to traditional subtractive methods.
- Ideal for aerospace, automotive, and medical implant applications.
DMLS Printing Process – Step-by-Step:
- Upload the 3D model and slice it into layers.
- The printer’s laser sinters the first layer of metal powder.
- A new layer of powder is spread and sintered.
- This process repeats until the entire part is built.
- Excess metal powder is removed using a brush or compressed air.
✅ DMLS allows direct fabrication of custom metal parts without the need for casting, machining, or welding.
🧠 Final Thoughts
In this article, we explored four key 3D printing technologies:
- FDM: Budget-friendly and widely used for rapid prototyping.
- SLS: Powder-based, great for complex geometries.
- SLA: Offers high precision and surface quality.
- DMLS: Enables direct metal manufacturing for end-use parts.
Each method has its strengths depending on the application and desired output. As 3D printing technology continues to evolve, it’s important to choose the right method for your project.
