What is a Dual Power Supply? – Circuit Construction and Working
Introduction
A dual power supply is a direct current (DC) power source capable of providing both positive and negative voltage. It ensures a stable power supply to electronic circuits, preventing system damage and ensuring efficient performance.
Understanding Dual Power Supply
Many electronic circuits require a reliable DC power source. A dual power supply is essential for powering both electronic and electrical equipment. It provides positive and negative potentials with a common ground, making it crucial for circuits using tubes, transistors, or operational amplifiers (Op-Amps).
For example, tube amplifiers require DC voltage for the plate, screen grid, and control grid. Similarly, transistors need DC voltage for emitter and collector biasing. Op-Amps also rely on dual power sources, as batteries are costly and require frequent replacements.
In this article, we will discuss the circuit construction and working principle of a dual power supply.
Why Do We Need a Dual Power Supply?
1. Op-Amps
Operational amplifiers (Op-Amps) typically require bipolar output voltages. One swings positive, while the other swings negative in response to the input signal. Since Op-Amps have two rails, a dual power supply is necessary to power them effectively.
2. Generators
When running two independent power circuits on the same power supply without shutting down the system, a dual power supply is beneficial. It enables maintenance and servicing of electrical devices without disrupting their operation.
3. DIY Projects
In DIY electronics, a dual power supply can be used for:
- Cell phone charging circuits
- Power banks
- Battery-less power circuits
- Any direct current power applications
Types of Dual Power Supply
Most electronic circuits require a DC power source ranging from 5V to 15V. Based on voltage requirements, there are three main types of dual power supply:
- 5V Dual Power Supply

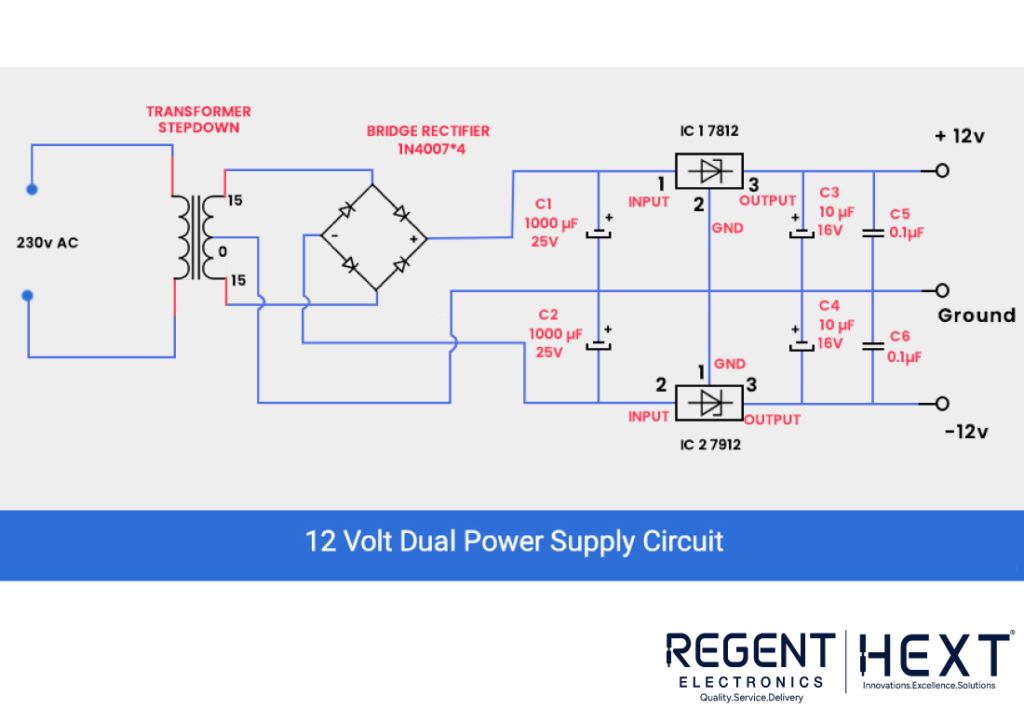

- 12V Dual Power Supply

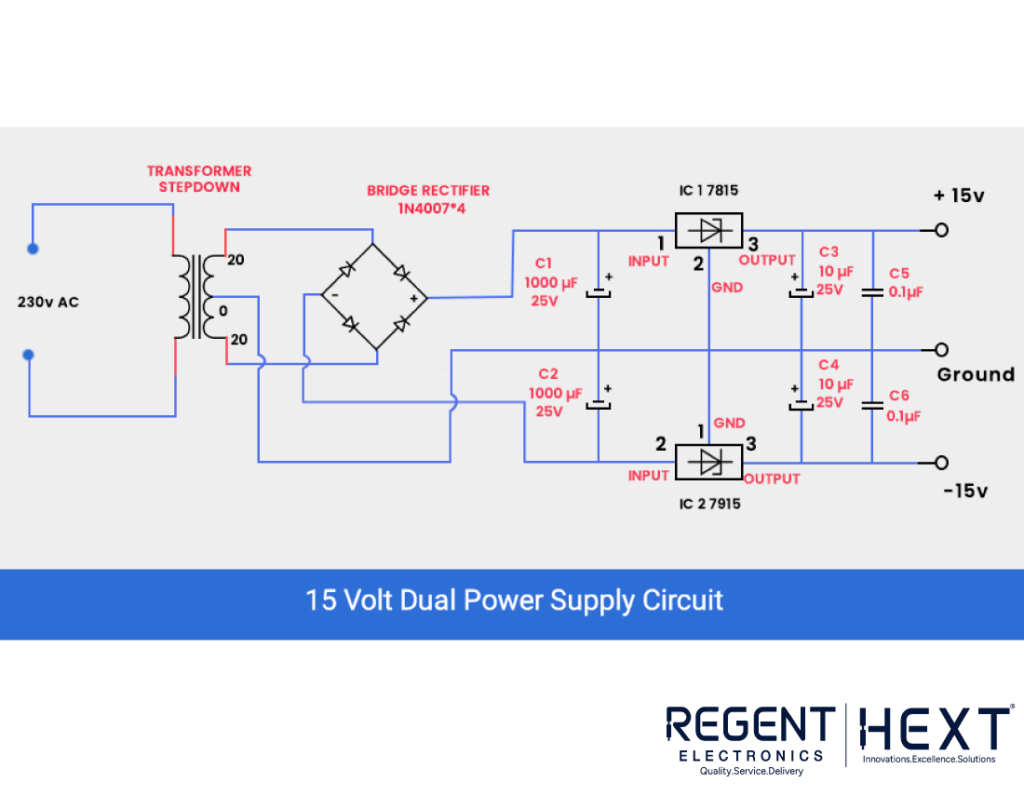

- 15V Dual Power Supply
Each of these configurations utilizes individual step-down transformers and voltage regulators. LEDs can be included for status indication.
Components Required
To construct a dual power supply, the following components are necessary:
- Step-down buck converter
- Capacitors
- Voltage regulators (7805, 7812, 7905, 7912)
- Resistors
- LED indicators
- Printed circuit board (PCB)
- Buck strip
- Dupont cables
Construction and Working
Circuit Construction
- Connect four diodes to form a rectifier circuit.
- The rectifier’s input is connected to the transformer’s secondary winding, while the output is connected to a voltage regulator IC.
- A 1000µF capacitor is connected between the voltage regulator’s input terminal and ground.
- The regulator’s output provides the final voltage supply.
- Each reference terminal is directly connected to the ground.
Working Mechanism
A power supply consists of four key components:
- Transformer: Converts the high-voltage AC (230V) to a lower AC voltage.
- Rectifier Circuit: Converts AC voltage into pulsating DC voltage.
- Filter Circuit: Uses capacitors to smooth out voltage fluctuations and stabilize the DC output.
- Voltage Regulator: Ensures a steady and regulated voltage output using ICs like 78xx (positive voltage) and 79xx (negative voltage).
Voltage Regulator ICs (78xx and 79xx Series)

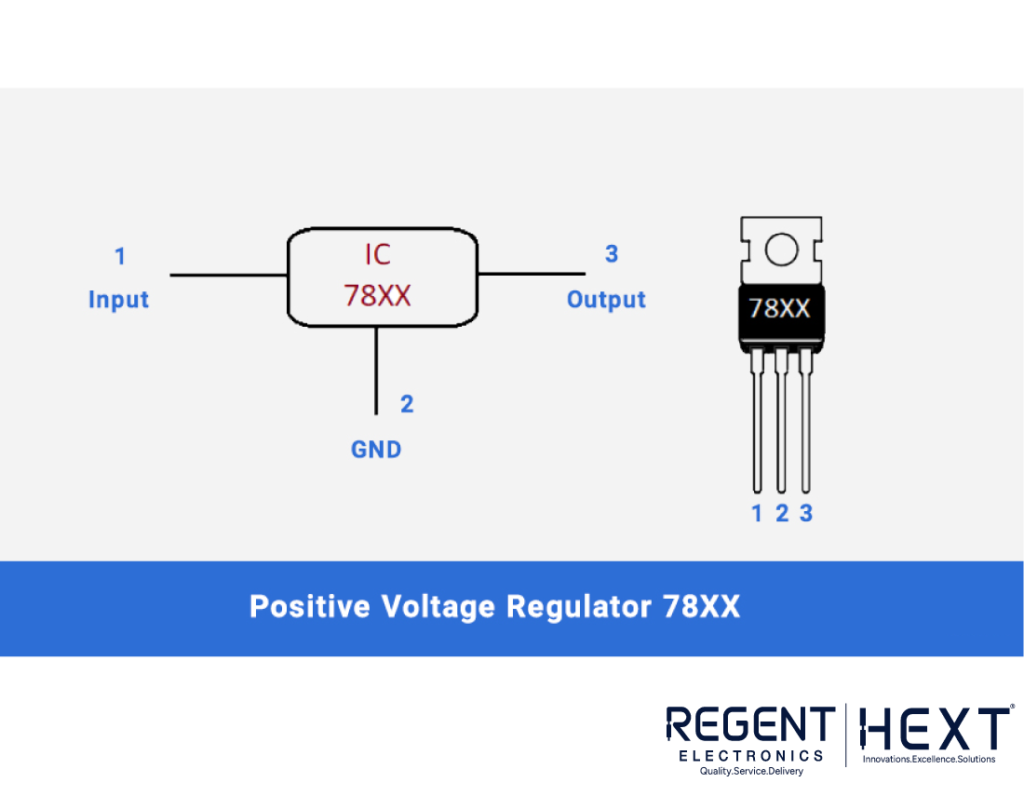

78xx Series (Positive Voltage Regulator)
- The 78xx series ICs (L78xx, LM78xx, MC78xx) provide a stable DC output.
- They offer built-in thermal overload and short circuit protection.
- The maximum operating temperature is 125°C.

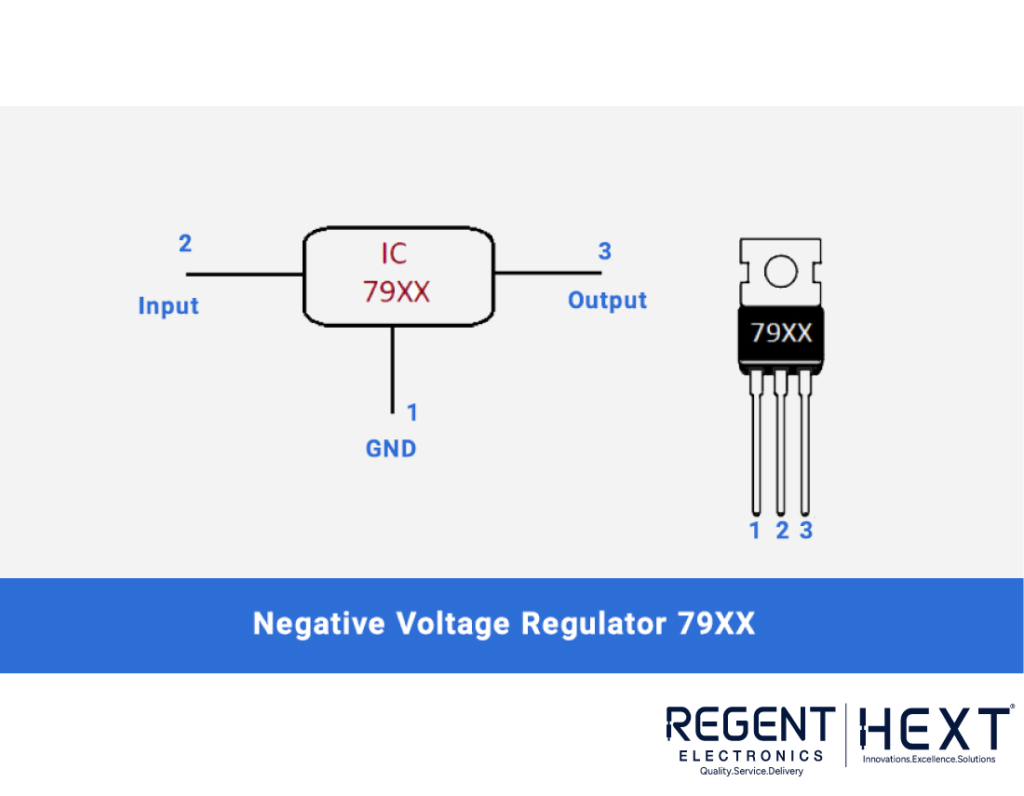

79xx Series (Negative Voltage Regulator)
- The 79xx series ICs provide negative voltage regulation (-5V, -12V, -15V, etc.).
- They include short circuit current limiting and thermal protection features.
Applications of Dual Power Supply
Dual power supplies are widely used in various electronic circuits, including:
- Audio Amplifiers, Operational Amplifiers, and Power Amplifiers
- Low Voltage Direction of DC Motors
- 12V Battery Charging Circuits
- Cell Phone Charging Circuits
- Power Bank Circuits
Conclusion
A dual power supply is an essential component in electronic circuit design, ensuring stable voltage and efficient operation. Understanding its working mechanism and applications can help in designing reliable power circuits for various devices.
