Understanding the Use Cases of S8050 and S8550 Transistors: Key Applications and Features for Electronics
Introduction to S8050 and S8550 Transistors
Transistors are fundamental components in modern electronic circuits, and two of the widely used transistors are the S8050 and S8550. The S8050 is an NPN transistor, while the S8550 is a PNP transistor. Both of these components play a critical role in applications such as audio amplification, switching, and signal processing. In this blog, we’ll explore the features, applications, and specifications of the S8050 and S8550 transistors, helping you understand their roles in your electronic projects.
S8050 NPN Transistor: Overview and Applications
The S8050 is a versatile NPN transistor often used for audio amplification and various general-purpose switching applications. It operates effectively in low voltage, high current circuits, making it ideal for numerous electronic tasks.
Key Specifications:
- Collector Current: Up to 0.7A (700mA)
- Maximum Voltage: 20V (between collector and emitter)
- Gain (hFE): Maximum gain of 400, with a typical gain of 110
- Base Current: 5mA
Applications of S8050:
- Audio Amplification Circuits: Due to its ability to handle higher currents, the S8050 is ideal for use in audio amplifiers.
- Class B Amplifiers: Used in push-pull transistor configurations to improve efficiency in audio applications.
- Switching Applications: Operates as a switch in a variety of circuits, including logic level and low-voltage systems.
- Low Signal Applications: Used in circuits where signal amplification is required.
Operating Modes: Switch vs. Amplifier
- As a Switch: The S8050 acts as a switch when operating in the saturation and cut-off regions. In forward bias, it conducts and allows current to flow between the collector and emitter, functioning as an open switch. In reverse bias, it blocks current flow, acting as a closed switch.
- As an Amplifier: In the active region, the S8050 amplifies power, voltage, and current. It is commonly used in a common-emitter configuration for signal amplification.

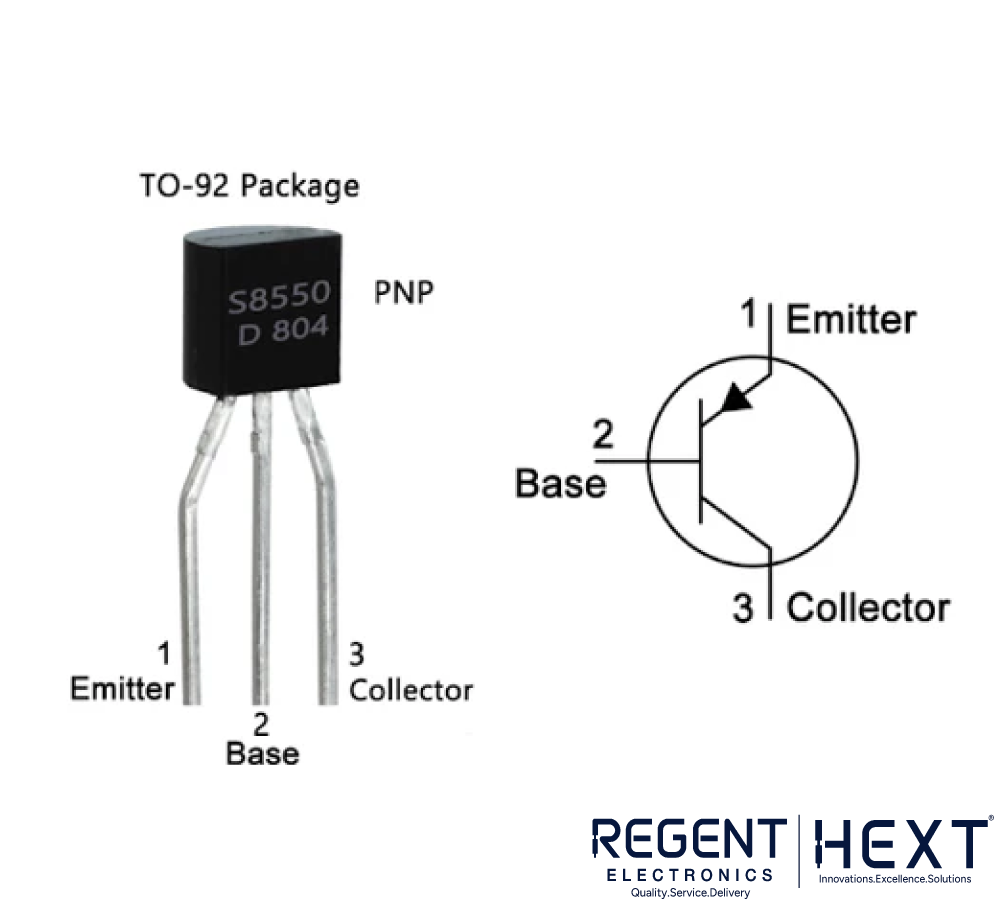

S8550 PNP Transistor: Overview and Applications
The S8550 is a popular PNP transistor with a wide range of applications in electronic circuits, especially in low voltage systems and switching tasks. Similar to the S8050, it’s highly reliable, offering excellent performance in small-scale circuits like those used in home audio systems or communication devices.
Key Specifications:
- Collector Current: Up to 0.7A (700mA)
- Maximum Voltage: 25V (between collector and emitter)
- Gain (hFE): Maximum gain of 300, with typical values around 200
- Base Current: 5mA
Applications of S8550:
- Switching Circuits: Frequently used in switching applications where it controls high current flows.
- Amplifiers: It’s commonly used in amplification circuits where a PNP transistor is needed for the positive side of the circuit.
- Signal Processing: Ideal for low signal applications requiring moderate gain.
Operating Modes: Switch vs. Amplifier
- As a Switch: The S8550 behaves similarly to the S8050 when used as a switch. When a voltage is applied to the base, current flows across the collector-emitter junction. Without base voltage, the transistor remains off, preventing current flow.
- As an Amplifier: Similar to the S8050, when used in the active region, the S8550 amplifies signals by applying the input to the forward-biased base-emitter junction and collecting the output across the reverse-biased collector-emitter junction.
Comparison of S8050 and S8550: Key Differences
| Feature | S8050 | S8550 |
| Package Type | TO-92 | SOT-23 |
| Transistor Type | NPN | PNP |
| Collector-Base Voltage | 40V | -40V |
| Collector-Emitter Voltage | 25V | -25V |
| DC Current Gain (hFE) | 350 | 400 |
| Maximum Collector Current | 0.5A | 0.5A |
| Transition Frequency | 150MHz | 150MHz |
| Power Dissipation | 300mW | 300mW |
| Max Junction Temperature | 150°C | 150°C |
Conclusion: Choose the Right Transistor for Your Circuit
Both the S8050 and S8550 transistors are essential components for switching and amplification tasks in various electronics applications. The S8050, an NPN transistor, is perfect for audio circuits and high current switching tasks, while the S8550, a PNP transistor, is ideal for circuits requiring positive current flow and moderate gain.
If you are working on general-purpose switching, low-signal amplification, or designing audio circuits, both of these transistors are excellent choices. Depending on whether your circuit requires NPN or PNP transistors, you can select either the S8050 or S8550 for reliable performance and efficiency.
For more information or to purchase these transistors, visit Regent Electronics, where we offer high-quality components at competitive prices to support your electronic projects.
