What is a Servo Motor? Working, Construction, Advantages, Disadvantages, and Applications
Servo motors are widely used in applications that demand precise control of motion, whether rotational or linear. From robotics to automation systems, these motors offer high efficiency, accuracy, and reliability.
In this article, Regent Electronics explores the working principle, construction, benefits, limitations, and real-world applications of servo motors, helping you understand why they are indispensable in modern electro-mechanical projects.
🔍 What is a Servo Motor?

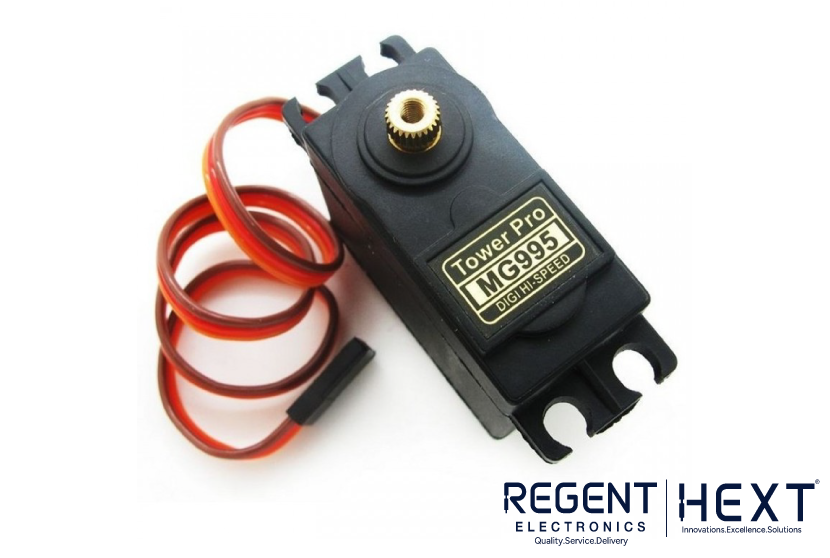

A servo motor is a rotary or linear actuator designed to provide precise control of angular or linear position, speed, and acceleration. It integrates a motor, a position sensor (usually a potentiometer), and a control circuit, forming a closed-loop system for accurate feedback-based operation.
Depending on the power source, servo motors are classified into:
- DC Servo Motors
- AC Servo Motors
These motors are lightweight, compact, and capable of delivering high torque, which makes them ideal for use in RC vehicles, drones, automation systems, and industrial machinery.

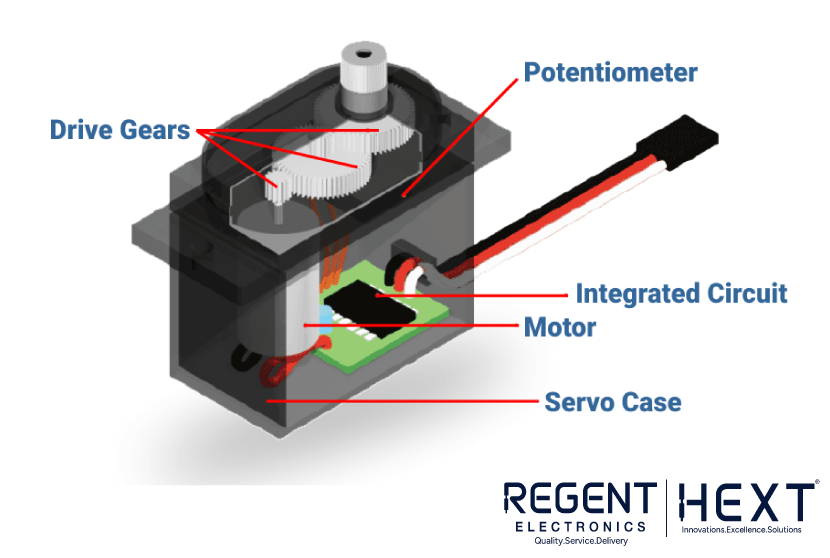

⚙️ Construction of a Servo Motor
A typical servo motor consists of the following components:
1. DC Motor
This is the core unit responsible for generating rotary motion.
2. Gearbox / Gear Reduction Unit
Reduces the motor’s high speed and increases torque. It also helps in achieving finer control of motion.
3. Potentiometer (Position Sensor)
Connected to the motor shaft, it continuously sends feedback to the control circuit about the shaft’s current position.
4. Control Circuit
Receives signals (pulses) and compares the desired position with the actual position reported by the potentiometer. It adjusts the motor’s movement accordingly.
5. Wiring
Most servo motors come with three wires:
- Red: Power supply
- Black: Ground
- White/Yellow: Control signal
🧠 Did You Know?
Standard servo motors use plastic gears, while high-power servo motors use metal gears for enhanced durability and torque handling.
✅ Advantages of Servo Motors
- No step loss: Unlike stepper motors, servo motors maintain synchronization with input signals and automatically compensate for load variations.
- High speed and torque: Capable of operating at high speeds without overheating.
- Efficient feedback system: Offers excellent positional accuracy and dynamic response.
- Compact and lightweight: Ideal for space-constrained applications requiring high torque.
⚠️ Disadvantages of Servo Motors
- Cost: Generally more expensive than standard motors due to added electronics and sensors.
- Vibration issues: Slight oscillations or “hunting” can occur at stop positions, which may not be suitable for all precision tasks.
- Control complexity: Requires a sophisticated control system for operation.

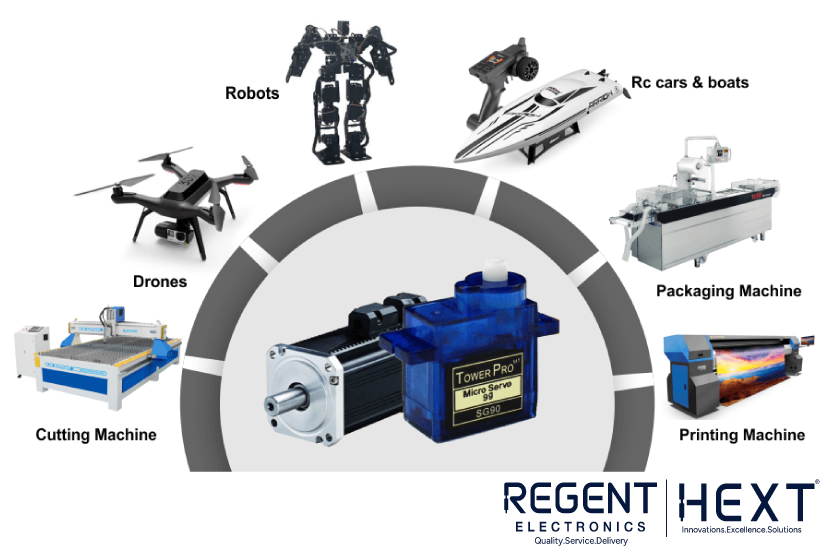

🛠️ Applications of Servo Motors
Servo motors are used across a variety of industries and applications due to their ability to perform accurate and rapid positioning tasks.
🔧 Industrial Applications:
- CNC machines
- Packaging equipment
- Printing presses
- Assembly lines
- Material handling systems
- Factory automation
🚗 Automotive:
- Cruise control systems
- Power steering actuators
- Headlight positioning
🤖 Robotics:
- Robotic arms for precise movement
- Humanoid robots
- Autonomous vehicles
🎮 Hobby and DIY Projects:
- RC cars, planes, and boats
- Robotic kits for education
- Toy car steering mechanisms
📀 Consumer Electronics:
- CD/DVD tray movement
- Camera auto-focus systems
- Printers and disk drives
✈️ Aerospace:
- Control surfaces for drones and aircraft
- Hydraulic systems with servo actuators
🎯 Final Thoughts
Servo motors are essential components for any application that demands precision, control, and reliability. Whether you’re building an industrial automation system or working on a robotics project, choosing the right servo motor can significantly improve performance.
At Regent Electronics, we offer a wide range of high-quality servo motors and compatible controllers for every type of project — from educational kits to advanced industrial systems.
