Understanding Temperature Sensors: Types and Working Principle
What is a Temperature Sensor?
A temperature sensor is an electronic device that measures temperature and converts it into an electrical signal. These sensors play a crucial role in various industries, from healthcare to manufacturing, ensuring accurate temperature monitoring and control.
Temperature sensors come in different forms, such as thermocouples, RTDs (Resistive Temperature Detectors), thermistors, and infrared sensors. They are widely used in applications ranging from weather forecasting to industrial automation and even in everyday household appliances.
Types of Temperature Sensors
Temperature sensors are broadly classified into two types:
- Contact Temperature Sensors
- Non-Contact Temperature Sensors
1. Contact Temperature Sensors
These sensors need to be in physical contact with the object they measure. They operate based on the principle of heat transfer and are commonly used in industrial and laboratory settings.
Types of Contact Temperature Sensors:
a) Thermocouples

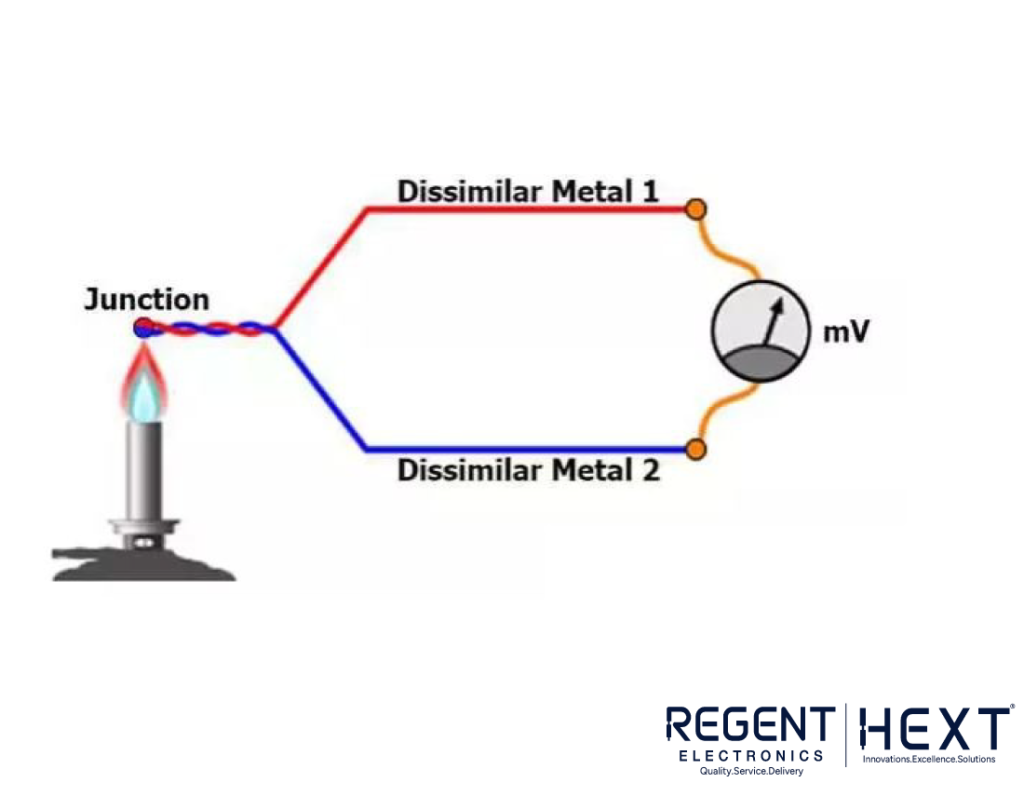

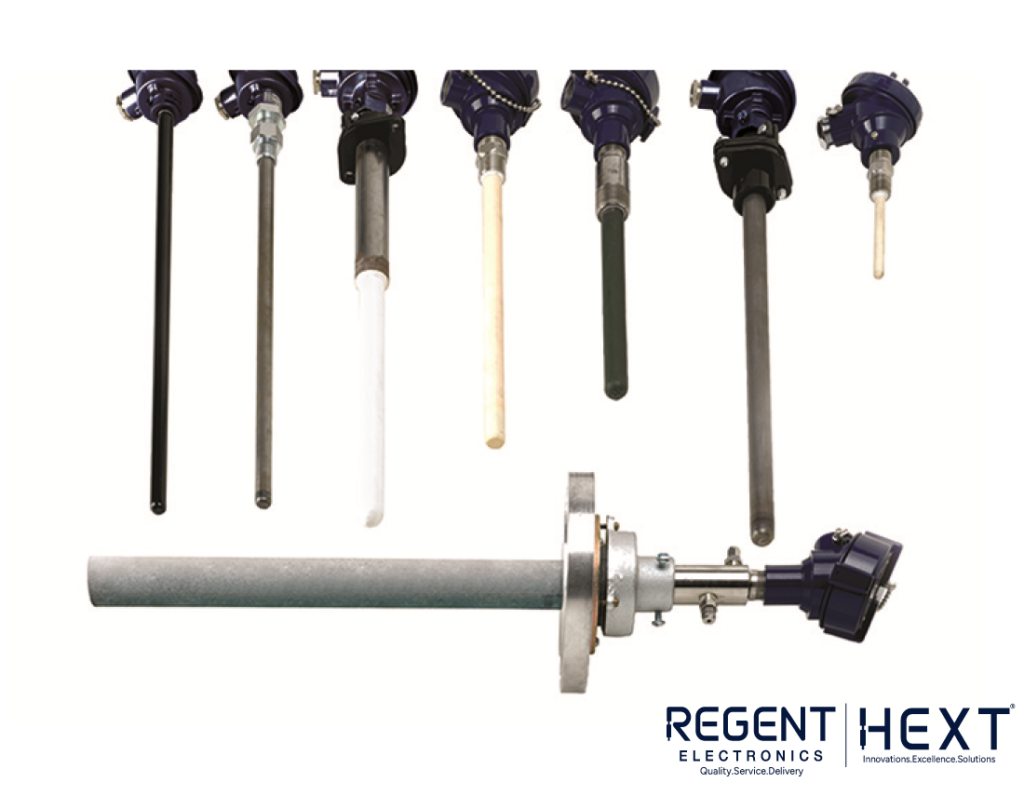

A thermocouple consists of two dissimilar metals joined at one end. When the junction experiences a temperature change, a voltage is generated due to the thermoelectric effect. This voltage corresponds to the temperature.
Common Thermocouple Types and Their Temperature Ranges:
| Type | Temperature Range |
| J | 0°C to 750°C |
| K | -200°C to 1250°C |
| E | -200°C to 900°C |
| T | -250°C to 350°C |
| N | 0°C to 1250°C |
b) Thermistors
Thermistors are highly sensitive temperature sensors made from ceramic materials. Their resistance changes significantly with temperature variations.
- Positive Temperature Coefficient (PTC): Resistance increases with temperature.
- Negative Temperature Coefficient (NTC): Resistance decreases with temperature.
c) RTD (Resistive Temperature Detector)

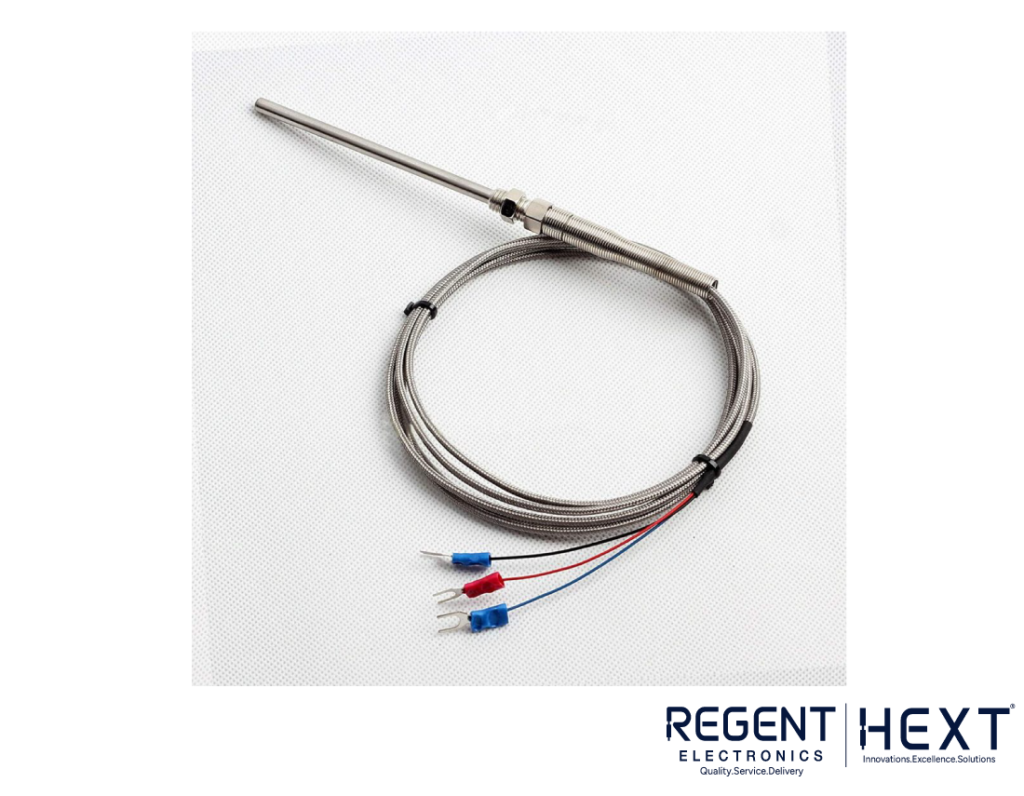

RTDs are precision temperature sensors made from pure metals like platinum, nickel, or copper. They exhibit a predictable change in resistance with temperature variations, making them ideal for high-accuracy applications. The most common RTD, the Pt100, has a resistance of 100 ohms at 0°C.
d) Thermostats

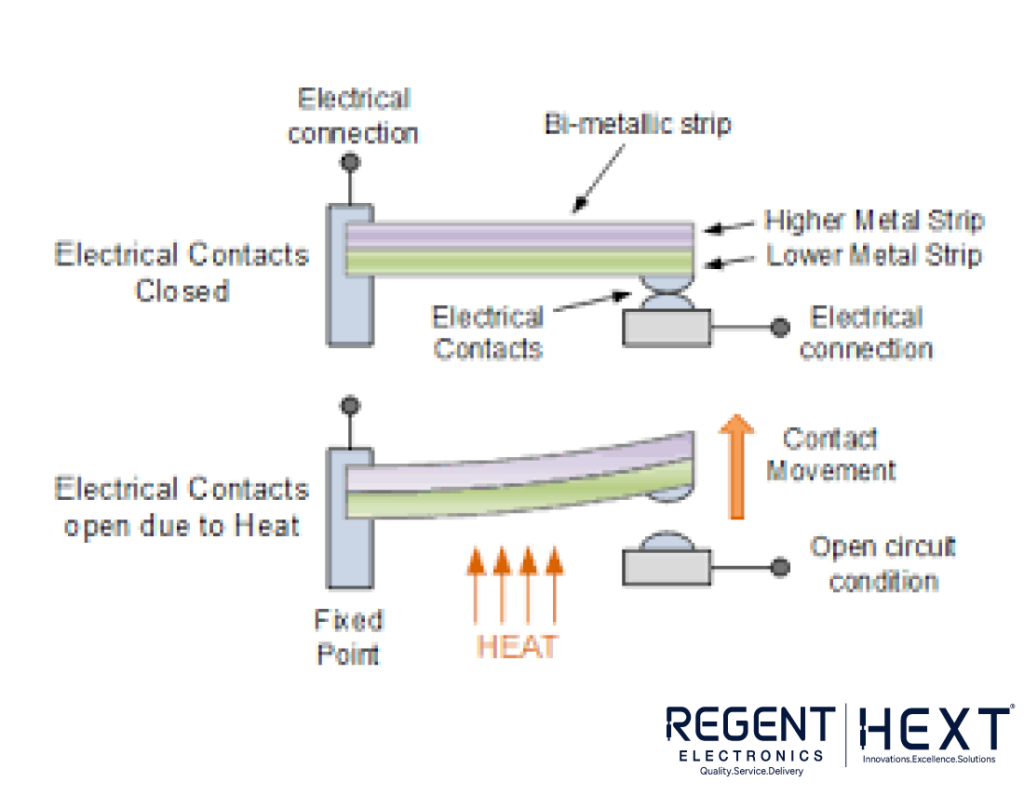

A thermostat is an electro-mechanical device that regulates temperature by switching heating or cooling devices on and off. It consists of a bimetallic strip that bends with temperature changes, triggering the switch.
2. Non-Contact Temperature Sensors
These sensors measure temperature without direct contact by detecting infrared radiation emitted by an object. They are widely used in medical thermometers, industrial monitoring, and remote sensing.
Infrared (IR) Temperature Sensors

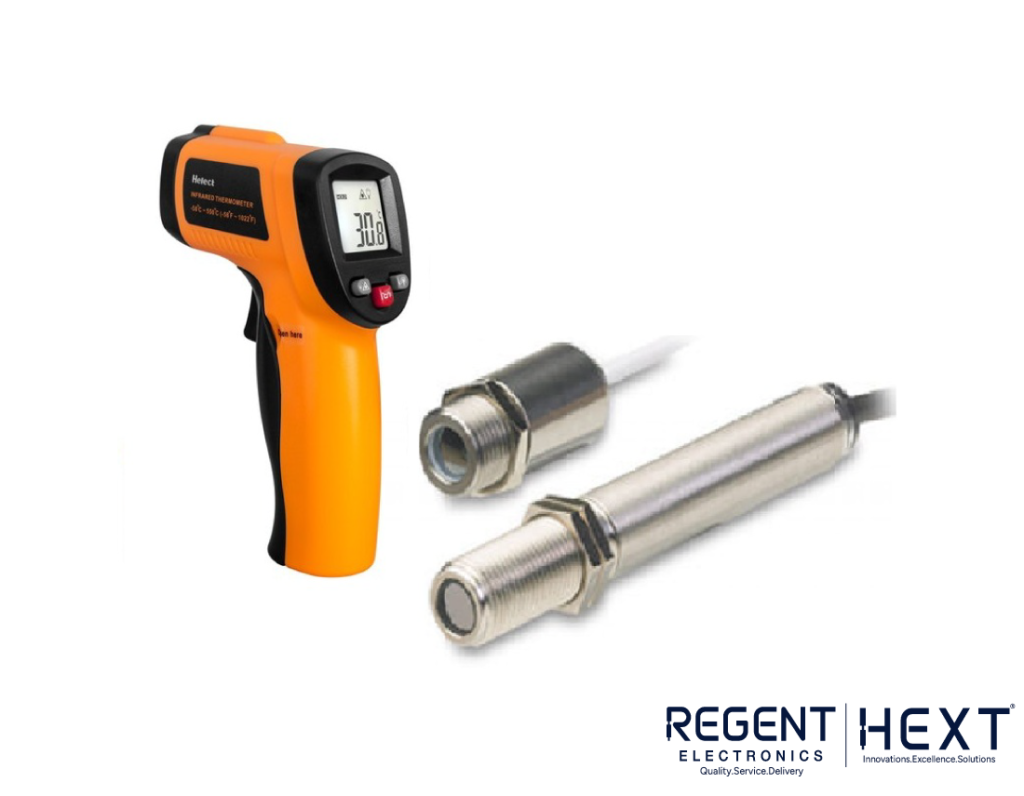

Infrared temperature sensors detect heat radiation from an object and convert it into an electrical signal. These are highly effective for measuring the temperature of moving objects or in hazardous environments where contact-based sensors are impractical.
How Do Temperature Sensors Work?
Temperature sensors operate by detecting changes in temperature and converting them into an electrical signal. The working principle varies based on the sensor type:
- Thermocouples generate voltage proportional to temperature changes.
- Thermistors and RTDs alter resistance with temperature variations.
- Infrared sensors detect heat radiation emitted by an object.
Applications of Temperature Sensors
Temperature sensors are used in a wide range of applications, including:
- Medical field: Infrared thermometers, patient monitoring systems
- Industrial automation: HVAC systems, furnace monitoring
- Automobiles: Engine temperature monitoring
- Consumer electronics: Smart thermostats, kitchen appliances
- Weather forecasting: Meteorological monitoring stations
Conclusion
Temperature sensors are an integral part of modern technology, ensuring precise temperature monitoring across various applications. Whether it’s a contact or non-contact sensor, each type serves a unique purpose in industrial, medical, and consumer applications.
