Difference Between Servo Motor and Stepper Motor: A Complete Comparison
When it comes to selecting the right motor for your automation or robotics project, the decision often boils down to servo motors vs stepper motors. While both serve similar functions, they are designed for different performance needs and control strategies.
In this detailed guide by Regent Electronics, we’ll help you understand the key differences between servo motors and stepper motors based on parameters like torque, speed, complexity, precision, and application suitability.
⚙️ Introduction to Servo and Stepper Motors
In the rapidly evolving world of automation, robotics, and industrial machinery, choosing the right type of motor is crucial to achieving efficiency and precision. Each motor has its strengths, and understanding their characteristics can help engineers, hobbyists, and project managers make informed choices.

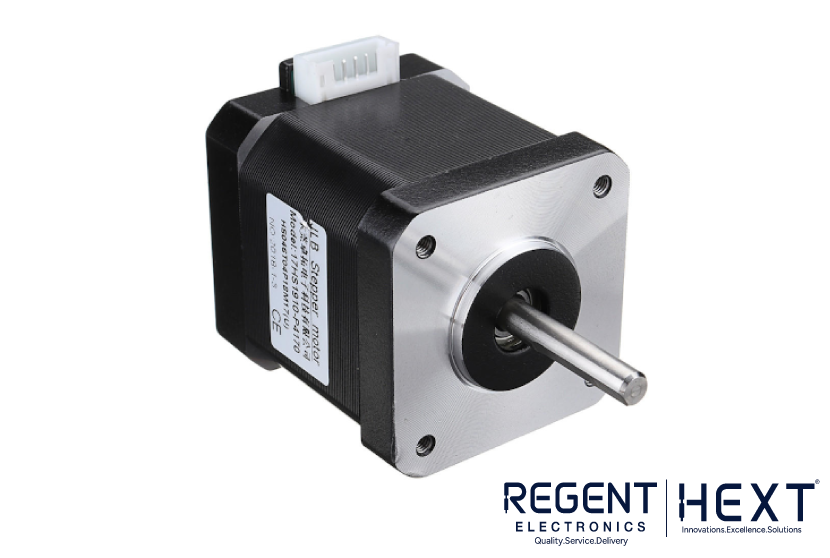

🔁 What is a Stepper Motor?
A stepper motor is an electromechanical device that converts electrical pulses into discrete mechanical movements or “steps.” It operates without a feedback system (open-loop), although an external encoder can be added for closed-loop control.
Key Characteristics of Stepper Motors:
- Moves in precise step increments
- No internal encoder (by default)
- High pole count, leading to greater torque at low speeds
- Ideal for positioning applications like 3D printers, CNC machines, and plotters
- Less complex and more affordable than servo motors
Limitations:
- Torque drops significantly at high speeds
- Can lose steps under load if not configured correctly
- Generates more heat during operation

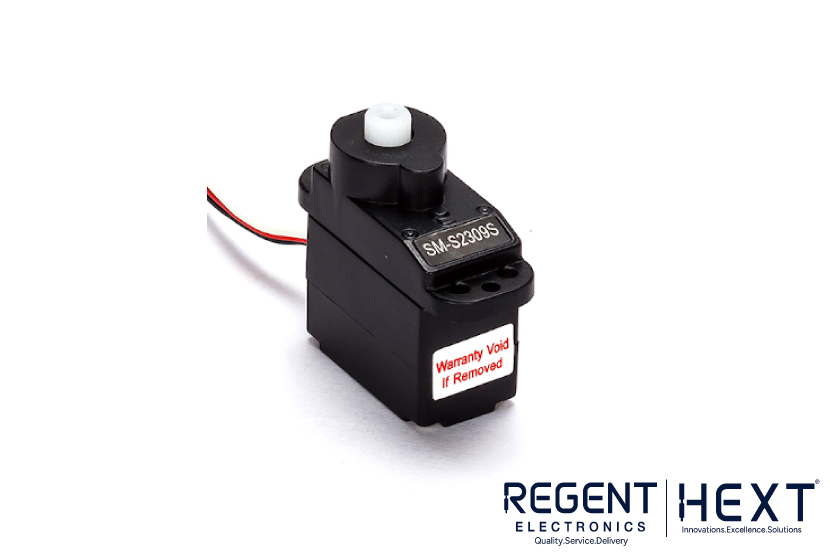

⚡ What is a Servo Motor?
A servo motor is a rotary actuator that includes a built-in encoder for closed-loop feedback. It is designed for high-performance applications where speed, accuracy, and torque control are critical.
Key Characteristics of Servo Motors:
- Encoder-based feedback system for precise positioning
- Maintains accuracy even at high speeds
- Offers smooth and efficient performance
- Common in robotics, industrial automation, CNC systems, and conveyor belts
Limitations:
- More complex and expensive
- May not be ideal for applications that require the motor to remain idle (standstill pulsing can cause instability)
🔍 Servo Motor vs Stepper Motor: Comparison Table
| Parameter | Stepper Motor | Servo Motor |
| Pole Count | High (more poles) | Low (fewer poles) |
| Encoder | Not included (optional external encoder) | Built-in encoder for feedback |
| Control Type | Open-loop | Closed-loop |
| Speed Performance | Lower at high speeds | High-speed capable with accuracy |
| Torque at Low Speed | High | Moderate, but compensated with feedback |
| Heat Generation | Higher | Lower |
| Precision | Moderate without encoder | High precision with feedback loop |
| Maintenance | Minimal | Requires tuning and setup |
| Cost | Budget-friendly | Higher cost due to added electronics |
| Applications | 3D printers, CNCs, simple automation | Robotics, CNCs, industrial machines, conveyor systems |
💪 Torque Comparison
While both motors can deliver a similar torque output, stepper motors typically provide higher torque at low speeds due to their high pole count. On the other hand, servo motors offer better torque across a wider speed range, especially with dynamic loads.
🚀 Speed Considerations
If your application demands speed over torque, a servo motor is the better choice. Its encoder and control system allow it to maintain accuracy even at high RPMs. Stepper motors may struggle to retain torque and can skip steps under heavy loads or high speeds.
🔥 Heating and Efficiency
Stepper motors tend to run hotter due to continuous current flow regardless of load. In contrast, servo motors are more energy-efficient, supplying power only as needed based on feedback from the encoder.
🧠 Final Thoughts: Which Motor Should You Choose?
When choosing between a servo motor and a stepper motor, consider your application’s specific needs:
- Choose a stepper motor for cost-sensitive, low-speed, and simple positioning applications.
- Choose a servo motor for high-speed, high-accuracy, and dynamic load applications where performance is critical.
