Types of Electric Motors and Their Uses – AC and DC Motors Explained
Electric motors are one of the greatest innovations in engineering, revolutionizing how we live and work since the advent of electricity. From home appliances to industrial machinery, motors are the driving force behind modern automation.
In this article, Regent Electronics brings you an in-depth look at the various types of electric motors, including AC and DC motors, along with their construction, working principles, and applications.
What is an Electric Motor?
An electric motor is an electromechanical device that converts electrical energy into mechanical energy. It works on the fundamental principle of interaction between magnetic fields and current-carrying conductors, generating rotational motion (torque).
Electric motors are broadly classified into:
- AC Motors (Alternating Current)
- DC Motors (Direct Current)

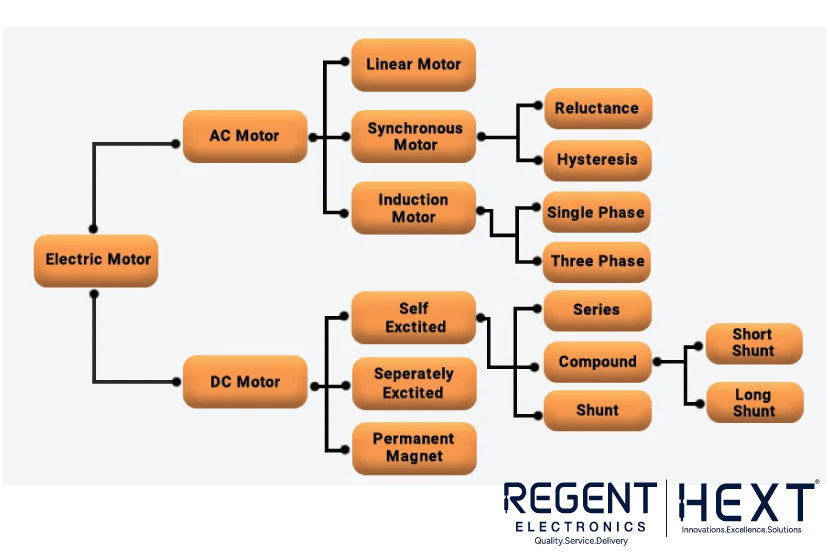

Types of Electric Motors
1. AC Motors
AC motors operate on alternating current and use electromagnetic induction to produce mechanical motion. These motors are widely used in residential, commercial, and industrial settings.
Key Components:
- Stator – Stationary part containing windings
- Rotor – Rotating part connected to the output shaft
Types of AC Motors:
a) Synchronous Motor
- Runs at a constant speed, synchronized with the supply frequency
- High precision, commonly used in automation, robotics, and clocks
- Further divided into:
- Reluctance Motor – Simple construction, stable speed
- Hysteresis Motor – Smooth, quiet operation, suitable for audio equipment

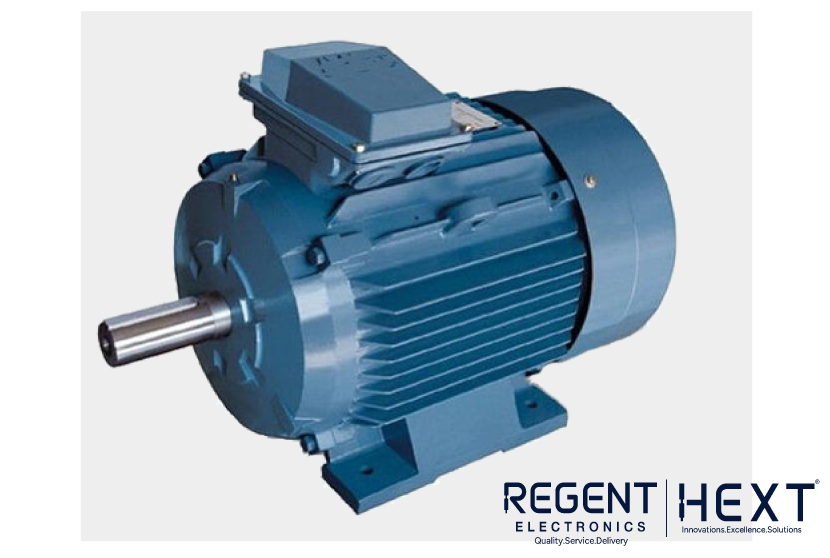

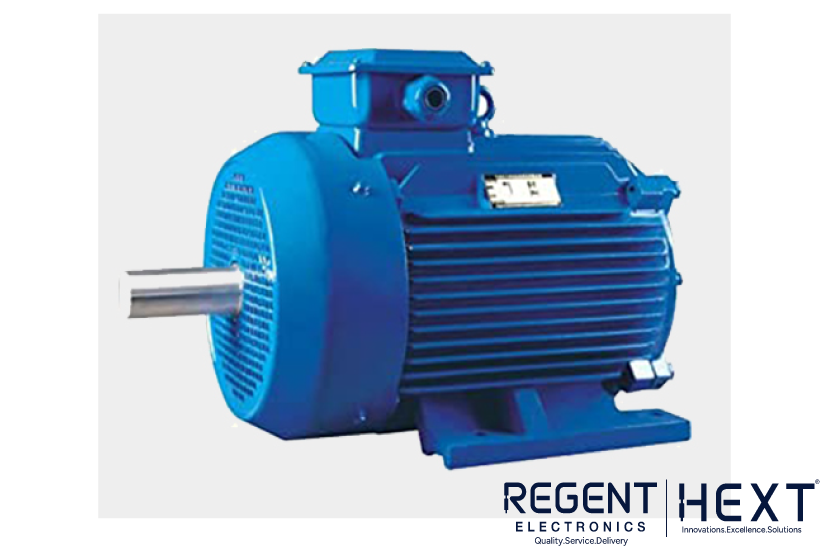

b) Induction Motor (Asynchronous Motor)
- Most commonly used AC motor
- Does not run at synchronous speed
- Based on rotor construction, classified into:

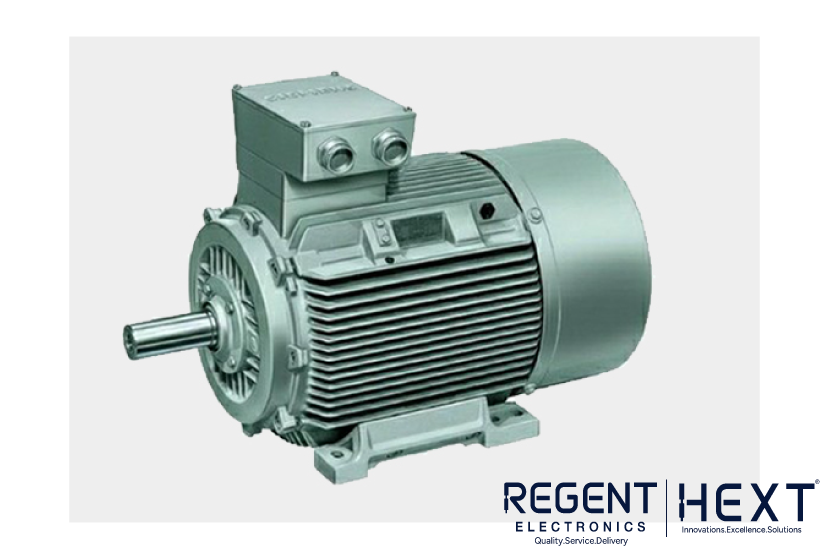

- Squirrel Cage Induction Motor – Robust and low maintenance
- Wound Rotor (Slip Ring) Motor – High starting torque, used in elevators, crushers
c) Linear Motor
- Produces linear motion instead of rotation
- Used in actuators, rail transport, and automatic sliding doors
2. DC Motors
DC motors convert direct current into mechanical motion. They are known for their excellent speed control and torque characteristics.
Key Components:
- Armature (Rotor) – Rotating part
- Field Windings (Stator) – Stationary part generating magnetic field
Types of DC Motors:
a) Separately Excited DC Motor
- Field winding powered by an external DC source
- Used in precision drives and speed control systems

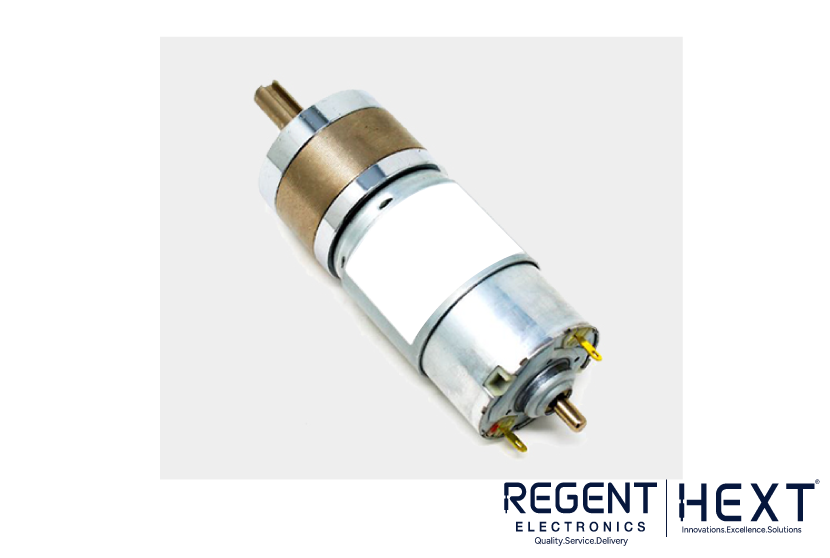

b) Permanent Magnet DC Motor (PMDC)
- Uses permanent magnets instead of field windings
- Compact, efficient, commonly used in automotive systems (wipers, blowers)
c) Self-Excited DC Motor
Field winding powered by the motor itself. Further classified into:

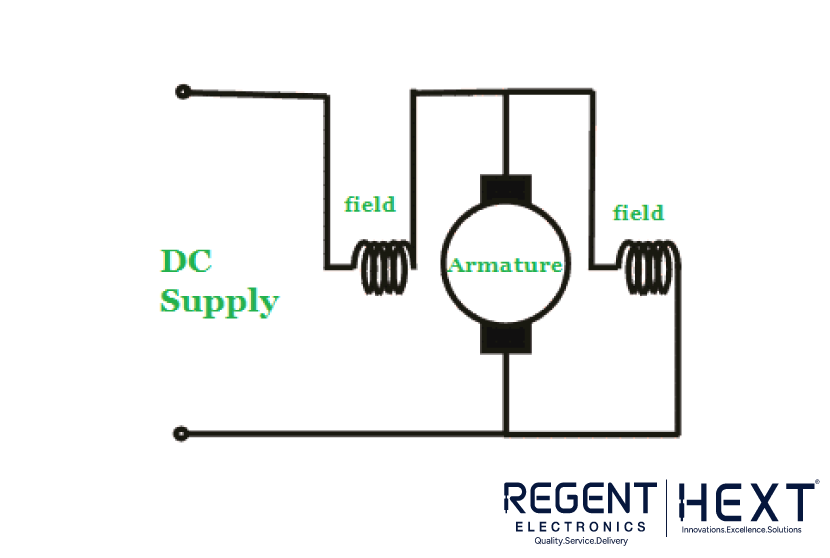

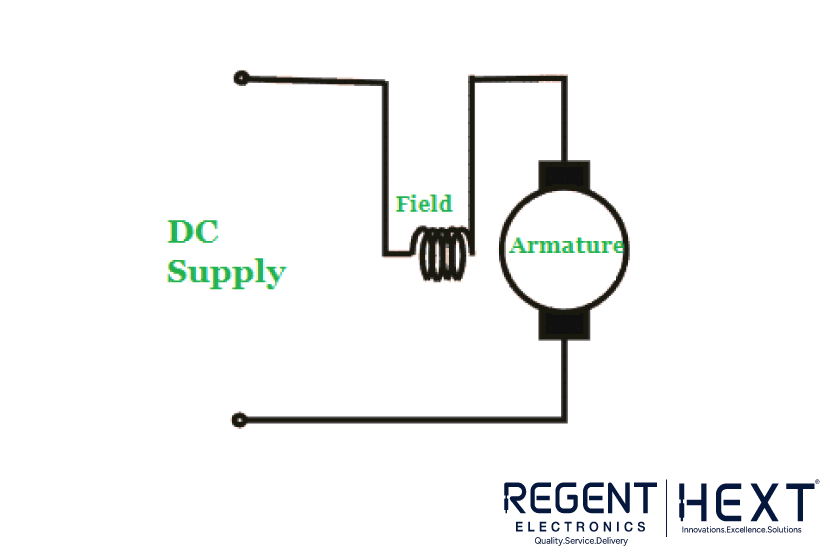

- Series DC Motor – High torque, used in cranes, traction

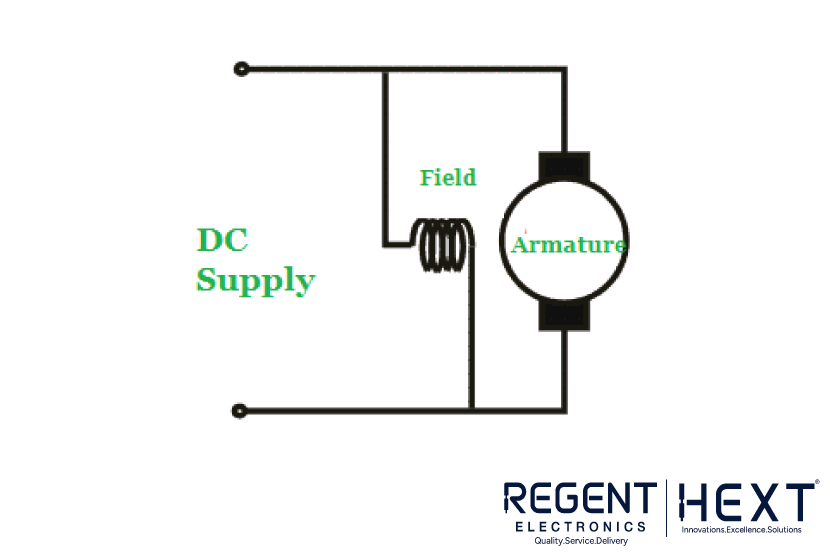

- Shunt DC Motor – Good speed regulation, used in lathes, conveyors
- Compound DC Motor – Combines features of series and shunt motors
- Cumulative Compound – High starting torque and good speed regulation
- Differential Compound – Rare, used in special applications
Other Common Motor Types

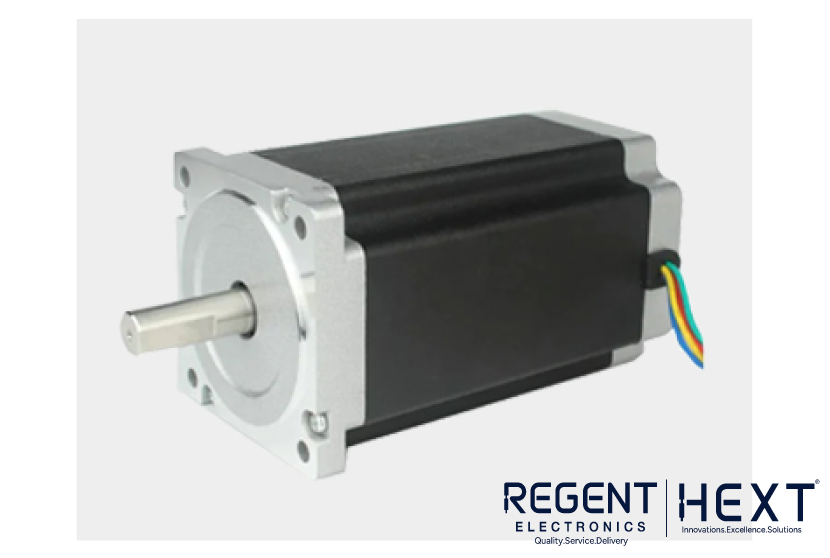

3. Stepper Motor
- A DC motor that divides rotation into equal steps
- Highly precise control, ideal for 3D printers, CNC machines, robotics

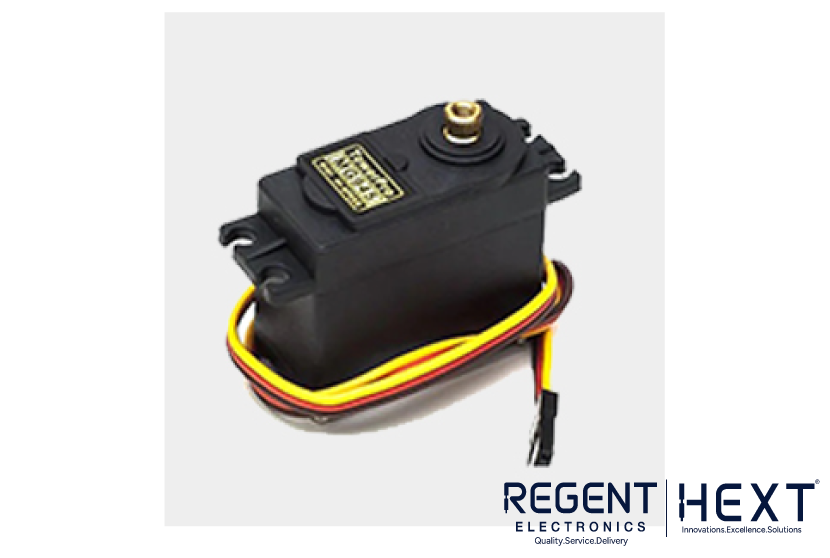

4. Servo Motor
- Offers precise control of position, speed, and torque
- Combines motor, feedback sensor, and controller
- Used in RC toys, industrial automation, and robotics
Applications of Electric Motors
Electric motors are found in nearly every industry and household. Some common applications include:
Home Appliances:
- Fans, refrigerators, washing machines, mixers, air conditioners
Industrial Use:
- Pumps, conveyors, blowers, CNC machines, elevators, compressors
Automotive and Robotics:
- Power windows, steering systems, electric vehicles, drones, robotic arms
Final Words
We hope this detailed guide helped you understand the various types of electric motors, their working principles, and real-world applications.
