What is a Stepper Motor? | Working, Advantages & Limitations
Stepper motors are essential components in today’s rapidly evolving world of automation, robotics, and precision control. These motors enable accurate, step-by-step rotation without the need for feedback systems, making them ideal for countless industrial and consumer applications.
In this article by Regent Electronics, we’ll explore what a stepper motor is, how it works, and the key advantages and limitations of using one.
🔍 What is a Stepper Motor?
A stepper motor is a type of DC electric motor that converts electrical pulses into discrete mechanical steps. Unlike traditional DC motors, a stepper motor moves in fixed angular increments, allowing for precise control of rotation without any position feedback system.
🧲 How It Works

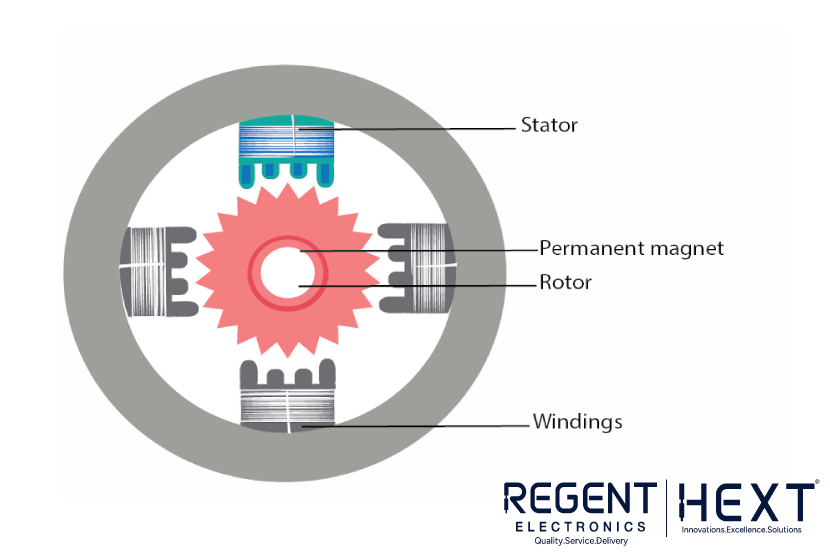

The rotor of a stepper motor is typically made of a permanent magnet, while the stator contains electromagnets with mechanical teeth. When pulses are supplied from a microcontroller, the energized stator coils create a magnetic field that aligns with the rotor teeth, causing it to move incrementally.
- Each pulse advances the shaft by a fixed step.
- The speed of rotation depends on the pulse frequency.
- A specific number of steps completes one full rotation of the motor shaft.
📈 The precise motion of a stepper motor is ideal for applications where exact positioning is critical, such as 3D printers, CNC machines, and robotic arms.

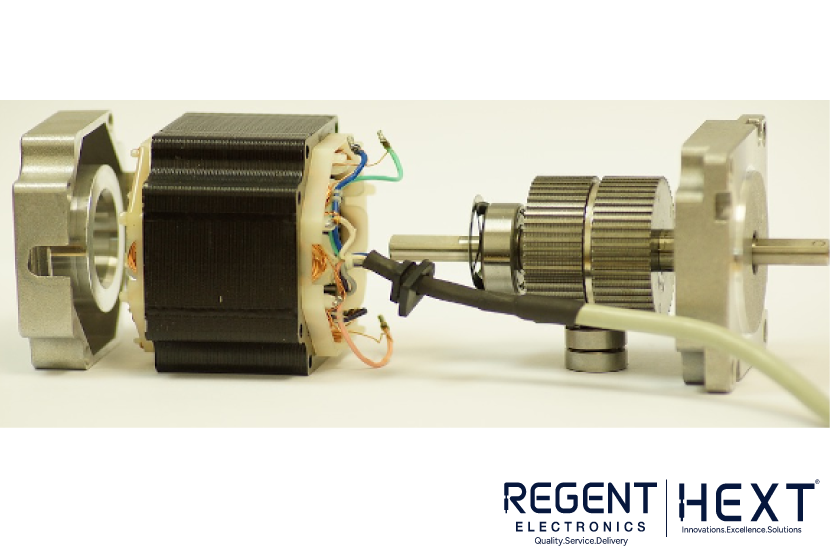

⚙️ Internal Construction of a Stepper Motor
The internal design consists of:
- Rotor: Permanent magnet or variable reluctance type
- Stator: Multiple coils arranged with teeth
- Bearings: Enable smooth shaft rotation
- Controller: Sends pulse signals to determine step direction and speed
✅ Advantages of Stepper Motors
🔧 Long Operational Life
Stepper motors have very few wear-prone parts, mostly limited to bearings. This makes them durable and suitable for long-term use, depending on the application and load conditions.
🌀 High Holding Torque
A stepper motor can maintain its shaft position even when stationary, provided the windings are energized. This “holding torque” makes them ideal for applications needing precise position locking.
- Detent Torque: The torque that holds the rotor in place even when the motor is not powered.
💰 Low Maintenance
Being a brushless motor, stepper motors do not suffer from brush wear. This significantly reduces the maintenance cost compared to brushed motors.
🎯 High Repeatability
Stepper motors can accurately return to their original position, which is crucial in applications requiring repeated motion cycles with high precision.
🐢 Excellent Low-Speed Torque
They offer high torque at low RPMs, making them perfect for applications like camera sliders, positioning systems, and valve controls.
💡 Simple and Cost-Effective Control
Since stepper motors use an open-loop control system, they don’t require encoders or feedback systems. This simplifies the design and reduces overall system cost and complexity.
⚠️ Disadvantages of Stepper Motors
⚡ Lower Efficiency
Stepper motors draw more current than other motor types, even when idle. This makes them less energy-efficient, and they may heat up during continuous operation.
🔻 Torque Reduction at High Speeds
As motor speed increases, torque decreases rapidly, limiting their effectiveness in high-speed applications. For high-speed, high-torque needs, servo motors are usually preferred.
🎯 Limited Accuracy Compared to Servo Motors
Without feedback, the accuracy of a stepper motor is lower than that of a servo motor. Precision can be improved using external encoders, but that adds cost and complexity.
⚠️ Missed Steps Under Heavy Load
Because stepper motors lack feedback, overloading or high acceleration can cause them to miss steps. This misalignment leads to positional errors in the application.
- To counteract this, stepper motors can be paired with encoders for closed-loop operation when higher accuracy is required.
🔁 Summary of Stepper Motor Pros and Cons
| Feature | Stepper Motor |
| Precision Movement | ✅ Excellent |
| Holding Torque | ✅ Strong |
| Feedback Required | ❌ Not needed |
| Speed Performance | ❌ Limited |
| Maintenance | ✅ Low |
| Cost | ✅ Affordable |
| Energy Efficiency | ❌ Moderate |
| Complexity | ✅ Simple |
🧠 Final Thoughts
Stepper motors offer a great balance of precision, control, and simplicity, making them a popular choice in automation, robotics, CNC machines, and motion control systems. While they do have limitations like reduced torque at high speeds and no internal feedback, these can be managed with proper design considerations or enhancements like closed-loop control.
📚 What’s Next?
Stay tuned for our next article where we’ll explore the different types of stepper motors, including unipolar, bipolar, and hybrid models.
