The DHT11 Temperature and Humidity Sensor Module is a reliable and user-friendly solution for monitoring environmental conditions. This compact and affordable sensor provides accurate temperature and humidity measurements, making it ideal for a wide range of applications, from home automation to industrial monitoring systems.
At Regent Electronics, we’re here to help you understand the features, uses, and applications of the DHT11, along with step-by-step instructions on how to get started with it.

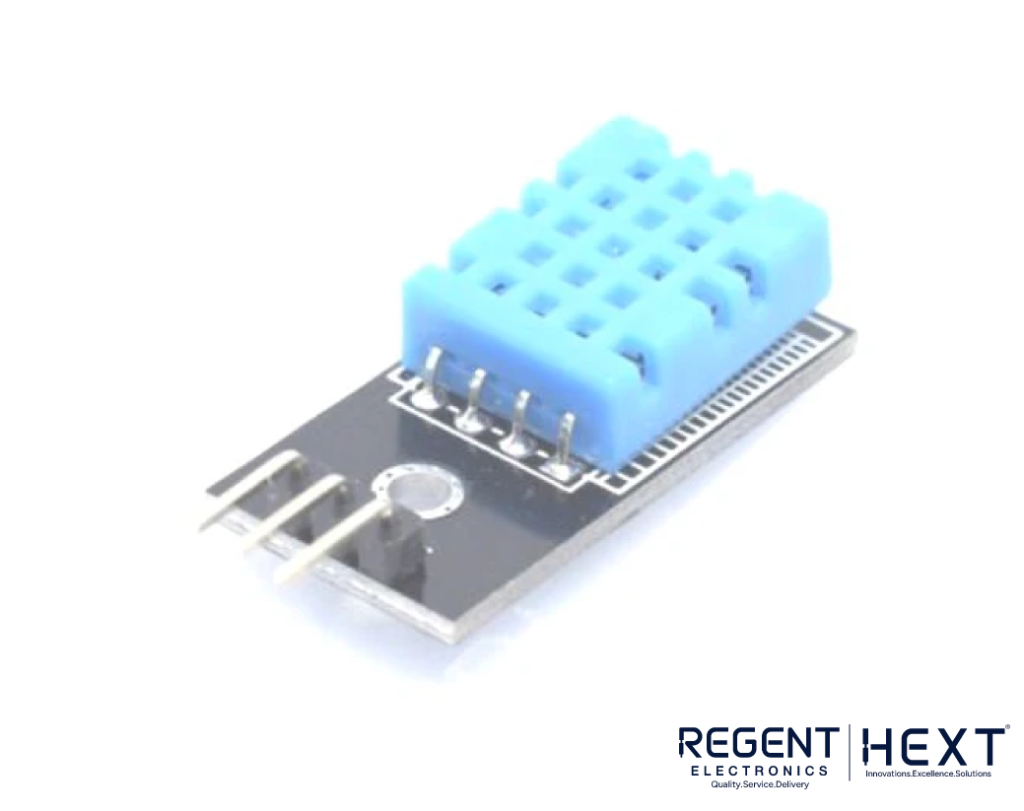

What is the DHT11 Module?
The DHT11 is a temperature and humidity sensor that combines advanced sensing technology with a calibrated digital output. Designed for simplicity and efficiency, this module operates on a voltage range of 3.3V to 5.5V DC and consumes minimal power.
- Current Consumption:
- Active Mode: 0.3mA while measuring temperature and humidity.
- Standby Mode: Only 60 microamperes.
- Measurement Range:
- Temperature: 0°C to 50°C.
- Humidity: 20% to 90%.
- Sensor Type: Utilizes an NTC Thermistor (Negative Temperature Coefficient) for temperature measurement.
- Pins: The module has three pins – + (VCC), – (GND), and OUT (Data).
The DHT11 module is known for its long-term stability, ease of use, and reliability, making it a popular choice for projects requiring environmental data monitoring.
How to Use the DHT11 Module?
Getting started with the DHT11 is straightforward. Follow these steps for connecting it to an Arduino board and start measuring temperature and humidity.

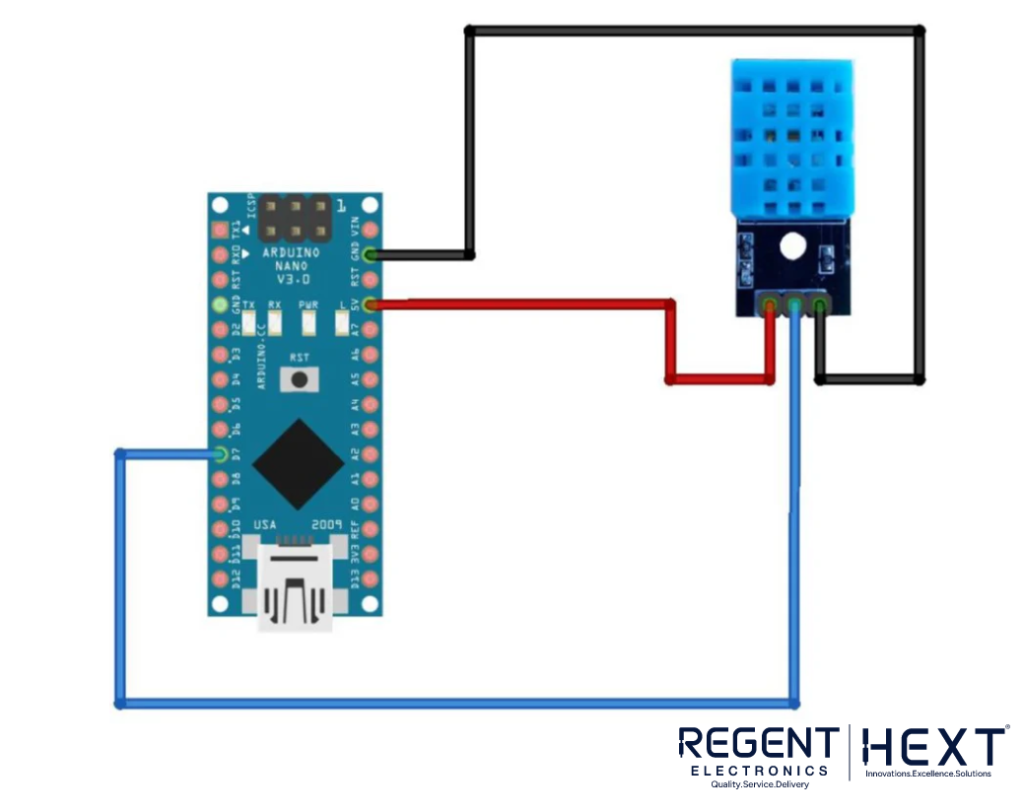

Connections:
- VCC (+ Pin): Connect to the 5V pin of the Arduino.
- GND (- Pin): Connect to the GND pin of the Arduino.
- OUT Pin: Connect to Digital Pin 7 of the Arduino.
Coding the DHT11:
To use the DHT11 module, install the EduIntro library in the Arduino IDE. Follow these steps:
- Open the Arduino IDE and navigate to Library Manager to install the DHT11 library.
- Load the example code provided for the DHT11 sensor.
- Upload the code to the Arduino board.

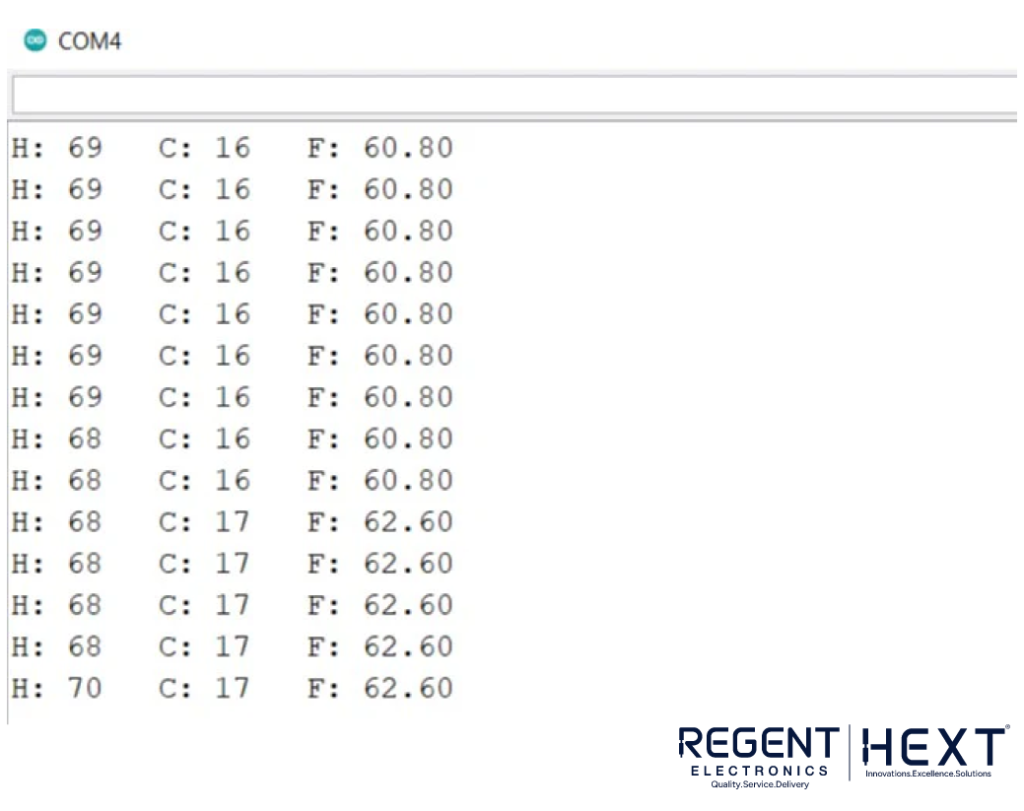

- Open the Serial Monitor to view real-time temperature and humidity readings.
Applications of the DHT11 Module
The DHT11 module is versatile and finds use in various applications, including:
- Humidity Regulators: Control and maintain optimal humidity levels in greenhouses, storage facilities, or homes.
- Temperature Monitoring Systems: Monitor environmental conditions in server rooms, laboratories, or aquariums.
- Automatic Climate Control: Implement climate control systems for smart homes or vehicles.
- Temperature Alarms: Trigger alarms when the temperature exceeds predefined thresholds.
