Photoelectric Proximity Sensor: Methods, Advantages, and Applications
A photoelectric proximity sensor is a highly versatile device used across various industries to detect the presence or absence of objects. These sensors are widely employed in industrial automation, manufacturing, and packaging due to their ability to detect both metallic and non-metallic targets. This blog explores the working principle, types, advantages, and applications of photoelectric proximity sensors.
What is a Photoelectric Proximity Sensor?

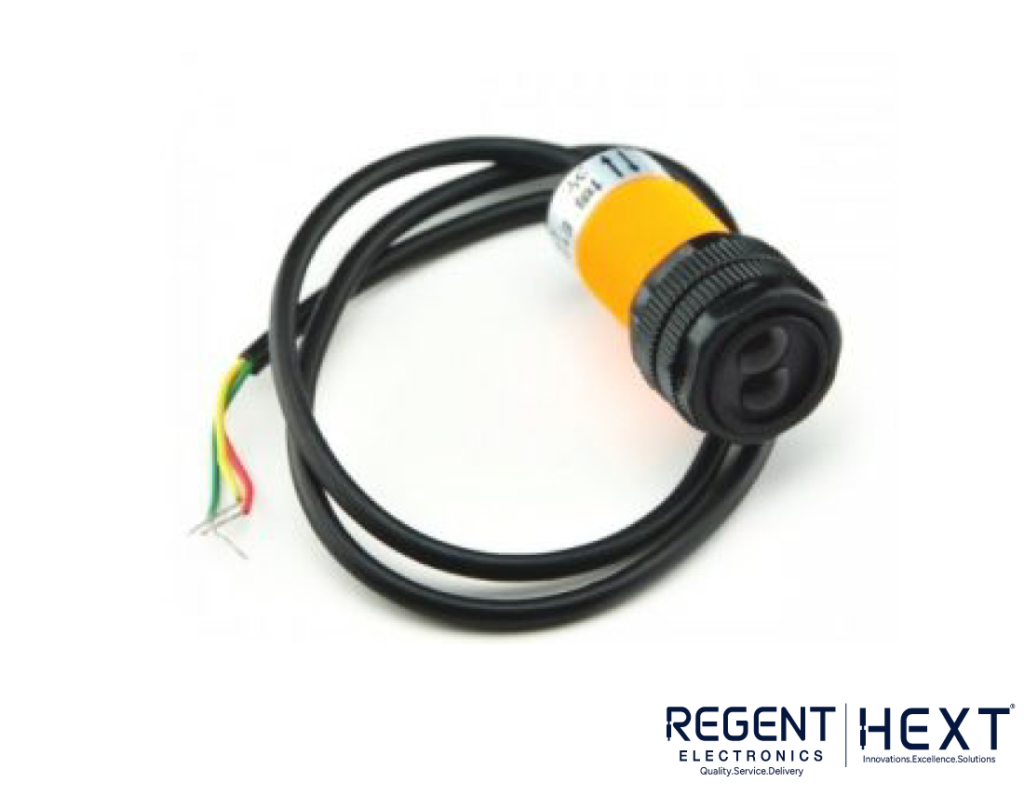

A photoelectric proximity sensor detects objects using a beam of light emitted from an LED or laser diode. The main components include:
- Emitter: Sends out a beam of visible or infrared light.
- Detector: Receives the reflected or interrupted light.
- Electronics: Amplifies and processes the detected signal.
These sensors operate based on the light reception and are categorized into dark-on and light-on types. A dark-on sensor produces an output when no light is received, while a light-on sensor is activated when light is detected.
Types of Photoelectric Proximity Sensors
There are three primary sensing methods:
1. Through-Beam Method

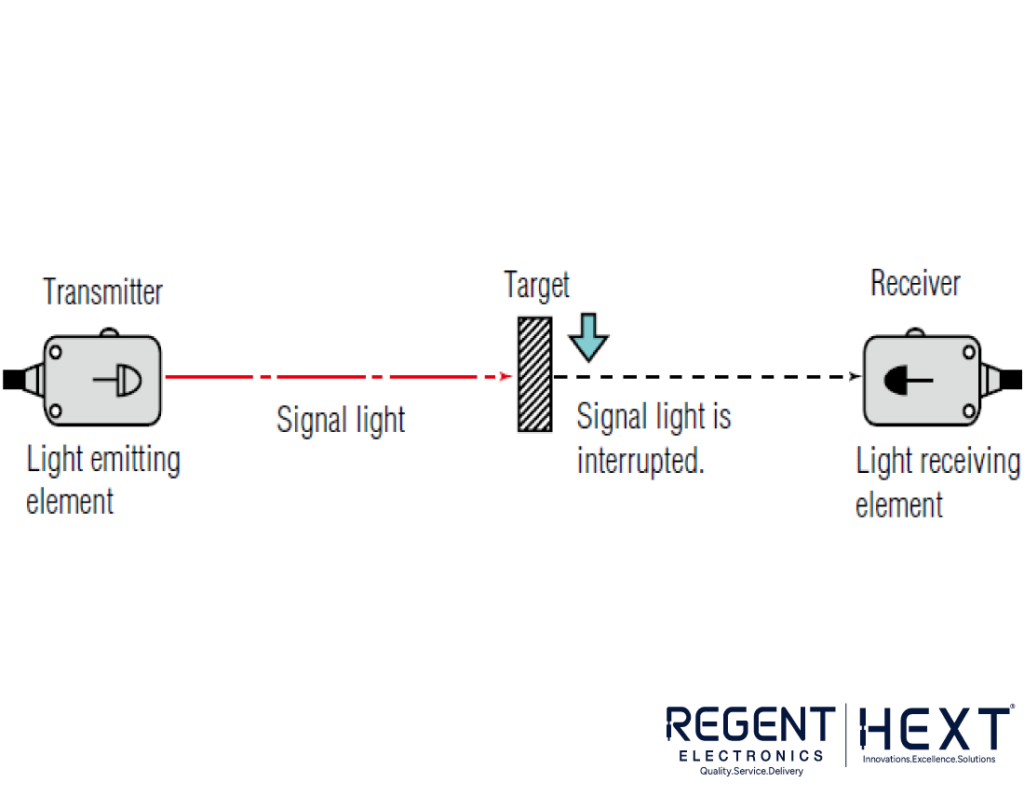

In this setup, an emitter sends a light beam directly to a receiver. When an object interrupts the beam, the sensor detects its presence.
- Requires separate emitter and receiver components.
- Offers the longest sensing range.
- High accuracy and effectiveness in harsh environments.
2. Retro-Reflective Method

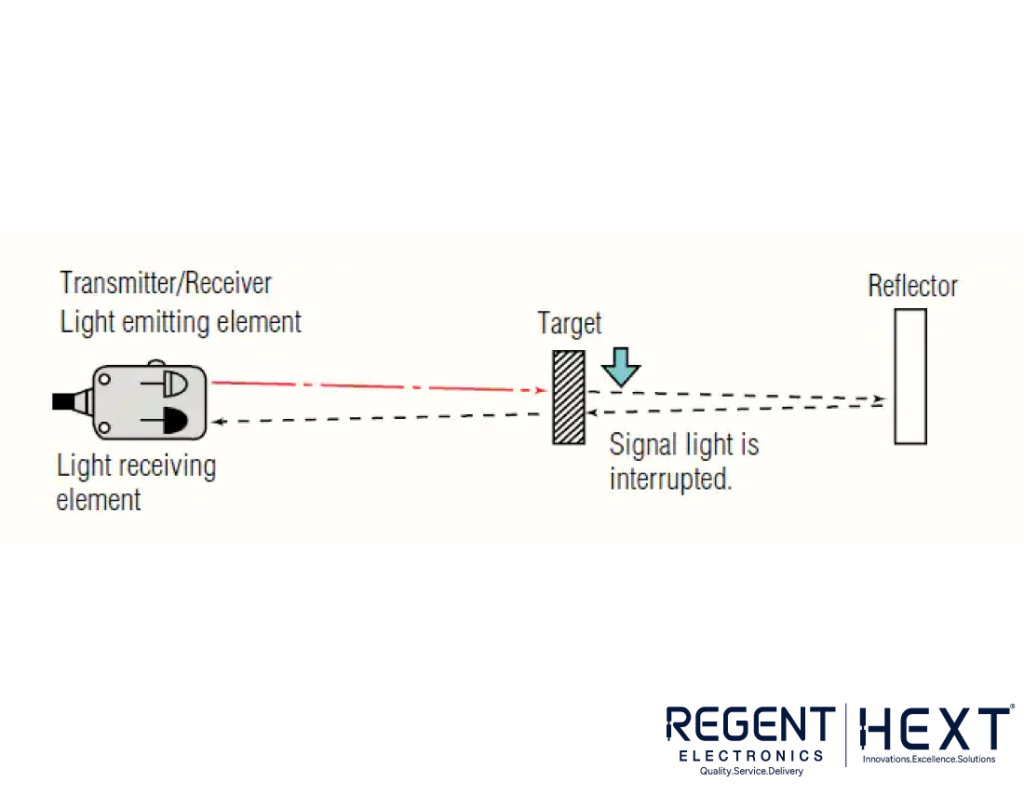

Here, both the emitter and receiver are housed together. The light beam is reflected back to the receiver using a reflector, and detection occurs when an object interrupts the path.
- Requires only one wiring location.
- Effective for detecting transparent objects.
3. Diffuse or Reflective Method

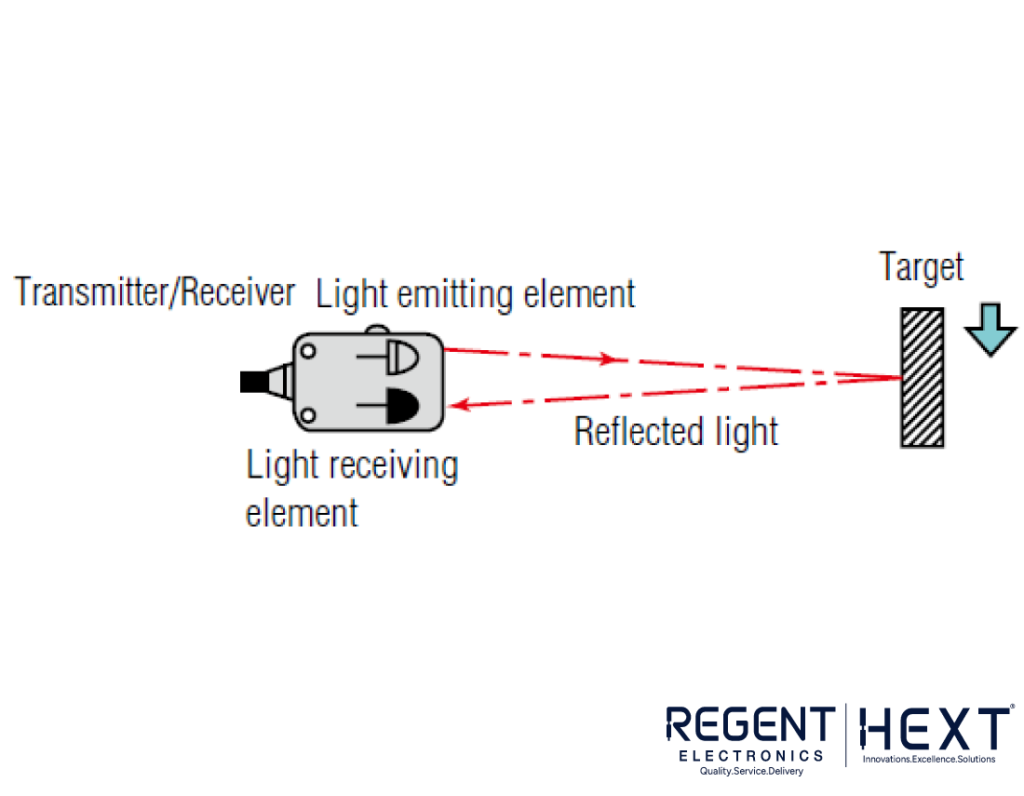

In this method, the object itself acts as the reflector. The sensor emits a light beam, and detection occurs when light bounces back from the target.
- Common in automatic faucets and touchless washroom systems.
- Suitable for detecting small objects and contrasting colors.
Advantages of Photoelectric Proximity Sensors
- Detects all materials: Works with both metallic and non-metallic objects.
- Long sensing range: Can detect objects from a significant distance.
- Fast response time: Ideal for high-speed automation.
- Reliable performance: Works efficiently in various environments.
- Versatile applications: Used in manufacturing, logistics, and safety systems.
Disadvantages of Photoelectric Proximity Sensors
- Lens contamination: Dirt and dust can affect sensor accuracy.
- Color and reflectivity impact detection range: The target’s surface properties can alter performance.
- Complex installation for through-beam sensors: Requires separate mounting for transmitter and receiver.
- Additional reflector required for retro-reflective sensors: Adds complexity to installation.
Applications of Photoelectric Proximity Sensors
These sensors are widely used across industries for various purposes, such as:
1. Quality Control in Production Lines
- Detects missing components or misaligned bottle caps in packaging industries.
- Ensures proper product alignment and size verification.
2. Object Counting in Manufacturing
- Counts small parts on conveyor belts in assembly lines.
- Helps in packaging operations by tracking product numbers.
3. Color Detection in Printing & Packaging
- Identifies color variations for quality assurance.
- Used in scanning barcodes and labels.
4. Distance Measurement & Object Positioning
- Utilized in robotics and automated transport systems for precision positioning.
- Helps in logistics for object detection in warehouses.
5. Safety Applications
- Installed in automatic doors in public transport and buildings.
- Used in light grids to monitor large areas for object detection.
Conclusion
Photoelectric proximity sensors play a crucial role in industrial automation, ensuring accurate detection and improved efficiency. With multiple sensing methods and versatile applications, they are indispensable in modern industries.
At Regent Electronics, we provide high-quality photoelectric proximity sensors tailored to your industrial needs. Stay tuned for more insightful blogs on sensors and automation technologies!
