Understanding IR Sensors: Working Principle and Applications
In today’s technological world, infrared (IR) sensors are widely used in a variety of industries and applications. These sensors are crucial in wireless communication systems, object detection, and motion sensing. This blog delves into the working principle of IR sensors and explores their various applications across different fields.
What is an IR Sensor?
An IR sensor is an electronic device that emits infrared light to detect objects or measure their temperature. It can sense motion, detect heat, and gather data through infrared radiation, which is invisible to the human eye. All objects in the infrared spectrum emit some form of thermal radiation, which can be detected by IR sensors.
The key components of an IR sensor include:

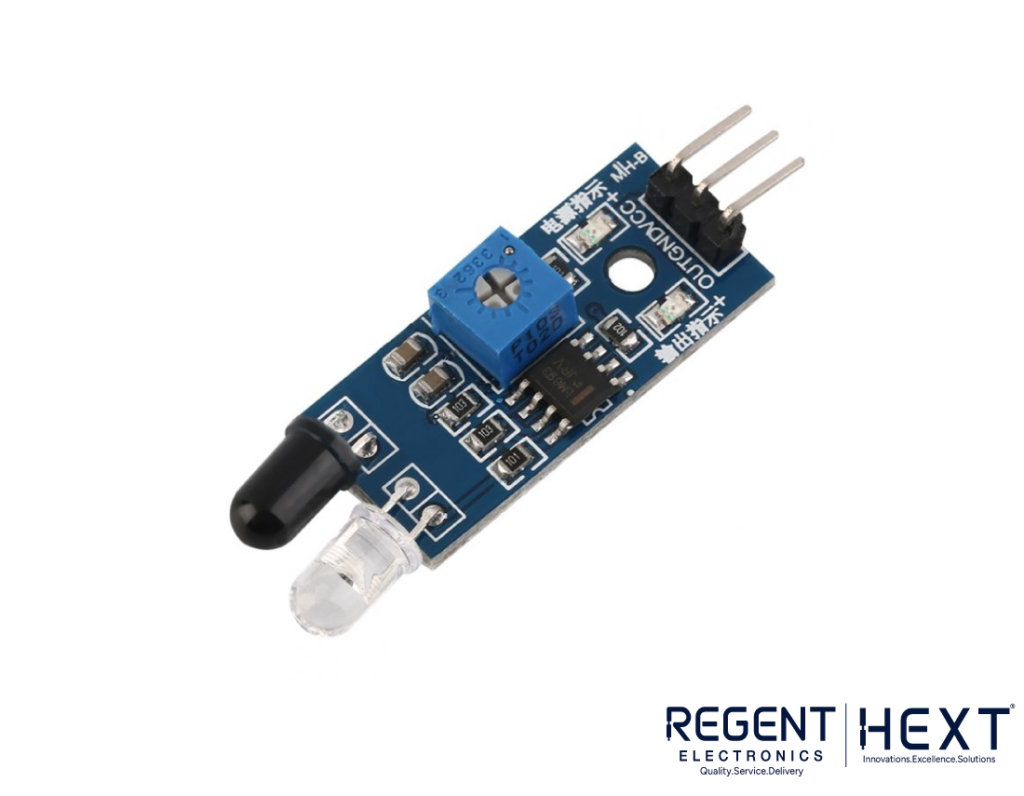

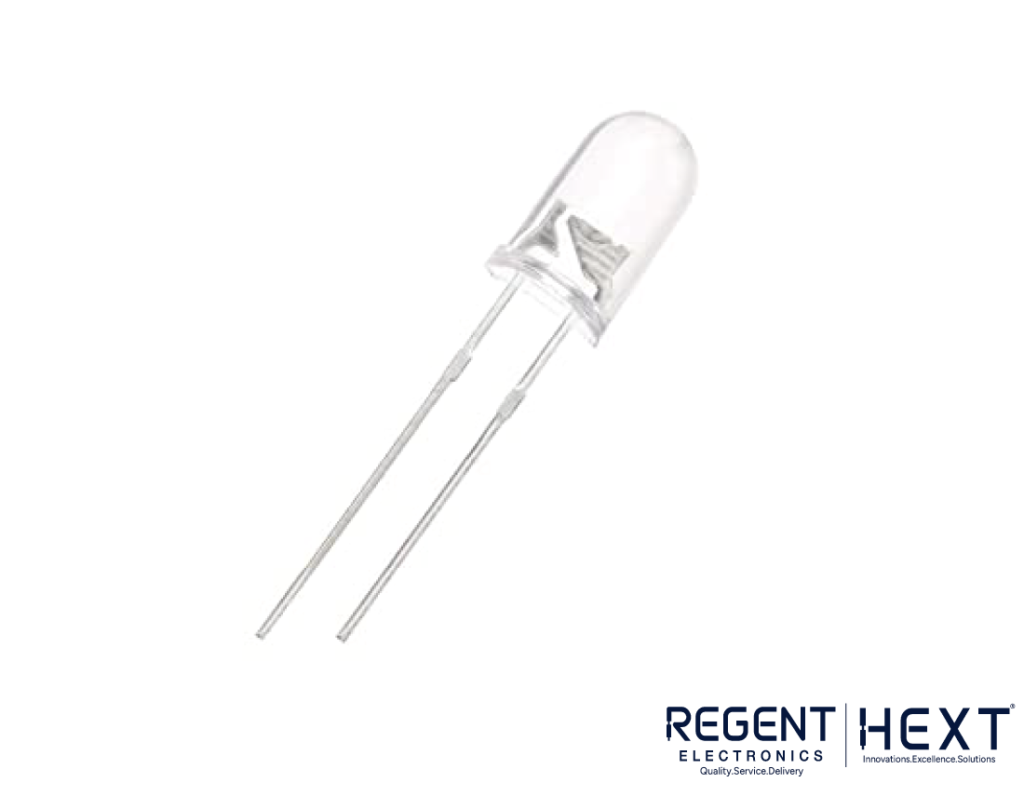

- Emitter: Typically an IR LED (Light Emitting Diode) that releases infrared light.
- Detector: Usually an IR photodiode, which detects the IR light emitted by the LED. When infrared light hits the photodiode, it causes changes in resistance and output voltage, depending on the intensity of the IR light.
Types of IR Sensors
There are two main types of IR sensors:
- Active IR Sensors: These sensors consist of both an infrared emitter (LED or laser diode) and a detector (photodiode or phototransistor). The emitted infrared radiation bounces off objects and is detected by the sensor, providing feedback on the presence and movement of the object.
- Passive IR Sensors (PIR Sensors): Unlike active sensors, passive IR sensors do not emit infrared light. Instead, they detect infrared radiation emitted by objects, typically based on heat. These sensors are divided into two types:
- Thermal Sensors: These sensors detect heat sources like humans or animals.
- Quantum Sensors: These sensors offer faster response times and higher sensitivity compared to thermal sensors, as they are wavelength-dependent.
Working Principle of IR Sensors

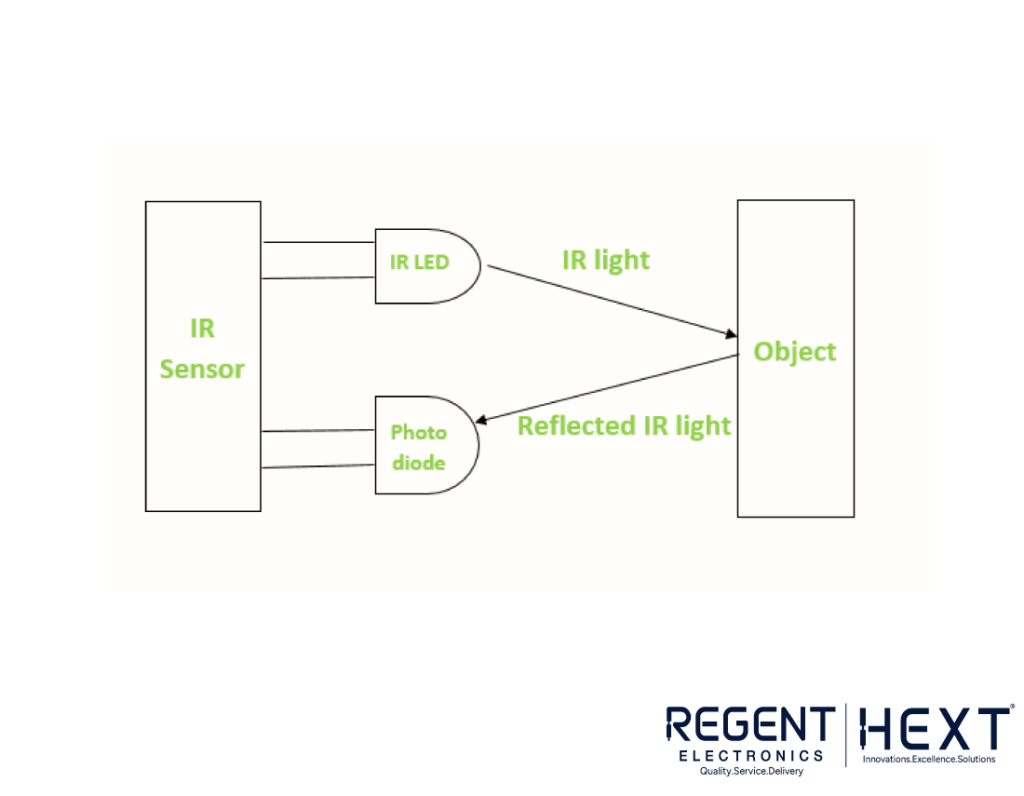

The working principle of an IR sensor is relatively simple. The IR LED (infrared emitter) transmits infrared radiation, which travels towards an object. Some of this radiation reflects off the object and is detected by the IR photodiode (infrared receiver). The amount of reflected light determines the sensor’s output signal. The sensor can measure the intensity of the reflected radiation, enabling it to detect motion or changes in temperature.
Components of an IR Sensor
An IR sensor system consists of several components:
- IR Transmitter (IR LED): This component emits infrared light. Unlike visible light, IR light is invisible to the human eye, which is why these sensors are ideal for many sensing applications.
- IR Receiver (Photodiode or Phototransistor): These components detect the reflected infrared radiation. They are sensitive to IR light and convert it into an electrical signal that can be processed.
Applications of IR Sensors
IR sensors are versatile and used across many industries for different applications:

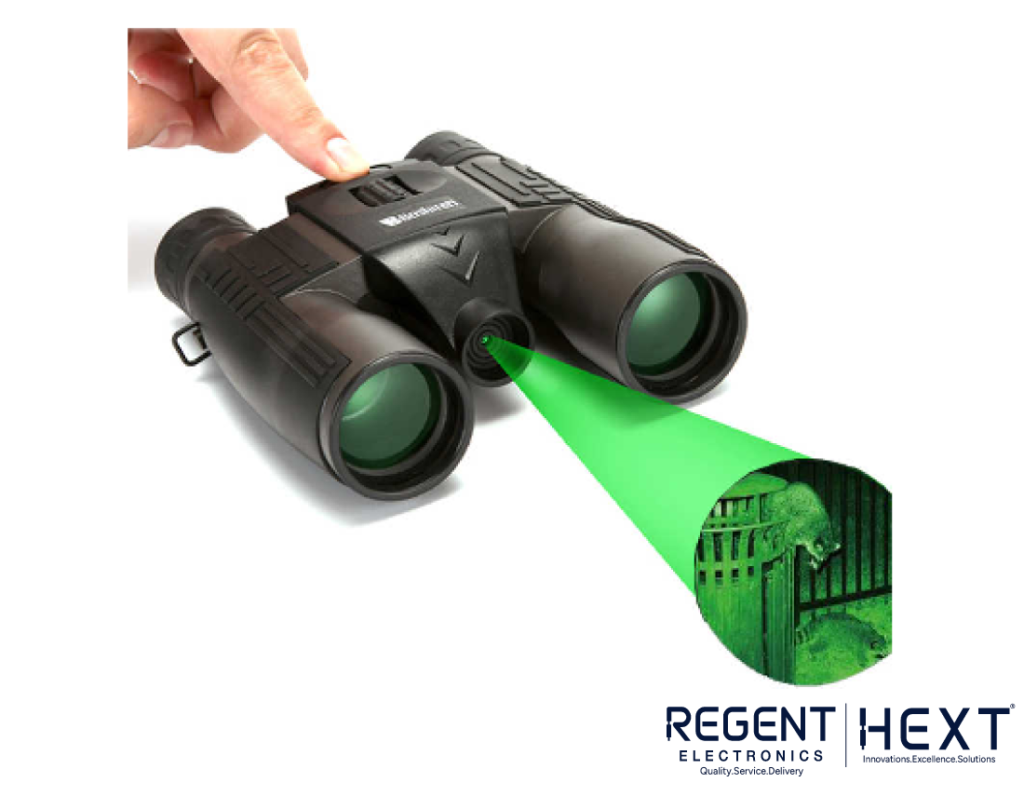

- Night Vision Devices: IR technology is employed in night vision equipment, where there is insufficient visible light. These devices capture ambient infrared light, amplify it, and convert it into visible images, enabling users to see in the dark.

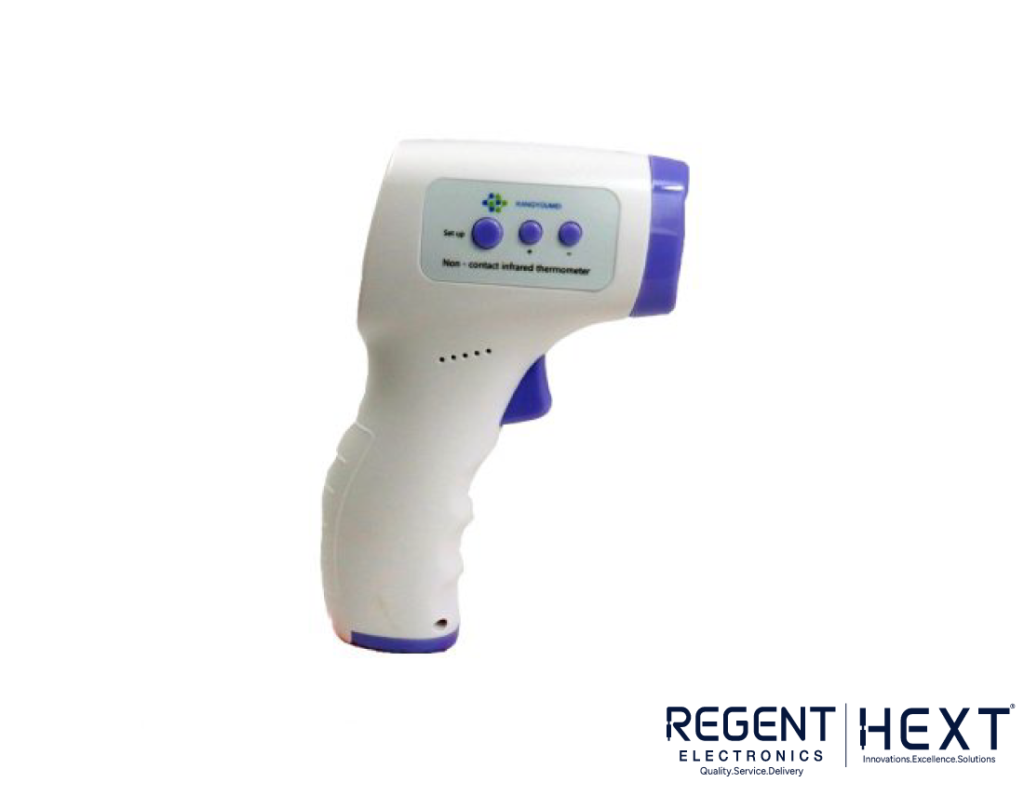

- Radiation Thermometers: IR sensors in radiation thermometers are used for non-contact temperature measurements. They are particularly useful for:
- Measuring temperature from a distance
- Offering faster response times
- Providing easy pattern measurements
- Infrared Tracking Systems: Infrared tracking, also known as infrared homing, is widely used in missile guidance systems. These systems track the infrared radiation emitted by a target, allowing for precision tracking.

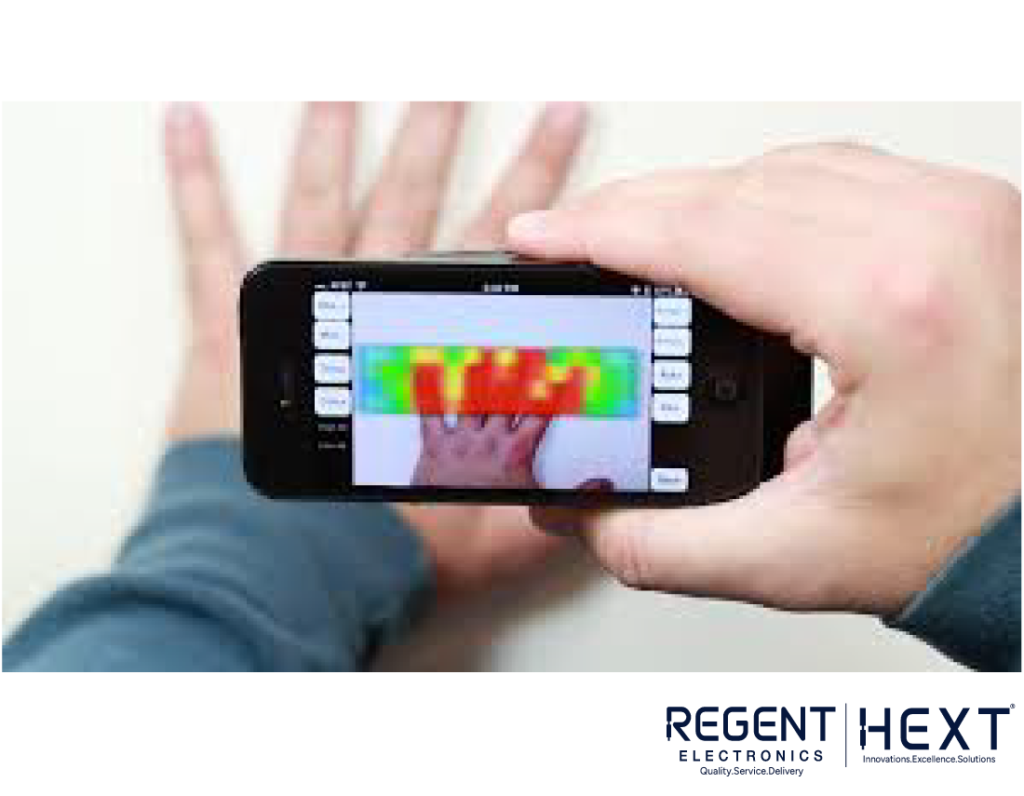

- IR Imaging Devices: IR imaging is crucial in various applications, including thermal imagers, medical imaging, and industrial inspections. It enables the detection of temperature variations and hidden defects in materials.
- Climatology and Meteorology: Infrared sensors are used for studying weather patterns, climate conditions, and atmospheric measurements, allowing for better predictions and analyses.
- Flame Detection: IR sensors play a role in flame monitoring and detection systems, providing real-time feedback for safety and control.
- Gas Detection and Analysis: IR sensors are used to detect gases in various environments. These sensors can help monitor and analyze air quality in industrial facilities, laboratories, and environmental research.
- Water and Moisture Analysis: IR sensors are also utilized in water testing and moisture analysis, helping to detect moisture content in materials and fluids.
Other Applications of IR Sensors
Apart from the aforementioned uses, IR sensors also find applications in:
- Petroleum exploration
- Railway safety
- Anesthesia testing
- Photobiomodulation
- Gas analysis
Conclusion
IR sensors are indispensable in modern technology, offering critical capabilities in areas such as motion detection, temperature measurement, and imaging. From enhancing night vision systems to ensuring safety in industrial processes, IR sensors have a broad range of uses. Understanding their working principle and applications can help you make the most of this technology for both personal and professional use.
If you’re interested in learning more about IR sensors and their integration with devices like Arduino, check out our in-depth blog on Interfacing IR Sensors with Arduino.
Regent Electronics is committed to providing innovative electronic components and solutions that power a wide range of applications, from home automation to industrial systems.
